Adjustable Steel Swing Gate Hinge with U-Bracket - 150kg
This small jointed hinge clamps around tubular gate frames with its U-bolt, giving an adjustable, articulated pivot without welding. Rated for gates up to 150 kg per pair, it suits farm gates, tube-frame gates and field applications.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This small jointed hinge clamps around tubular gate frames with its U-bolt, giving an adjustable, articulated pivot without welding. Rated for gates up to 150 kg per pair, it suits farm gates, tube-frame gates and field applications.
The articulated joint tolerates posts that aren't perfectly plumb, and the galvanised steel construction handles harsh outdoor conditions.
Key Features
- U-bolt fitting clamps tube gate frames without welding
- Rated to 150 kg per pair
- Articulated joint tolerates out-of-plumb posts
- Adjustable during and after installation
- Galvanised steel construction
- Suits farm, field and tube-frame gates

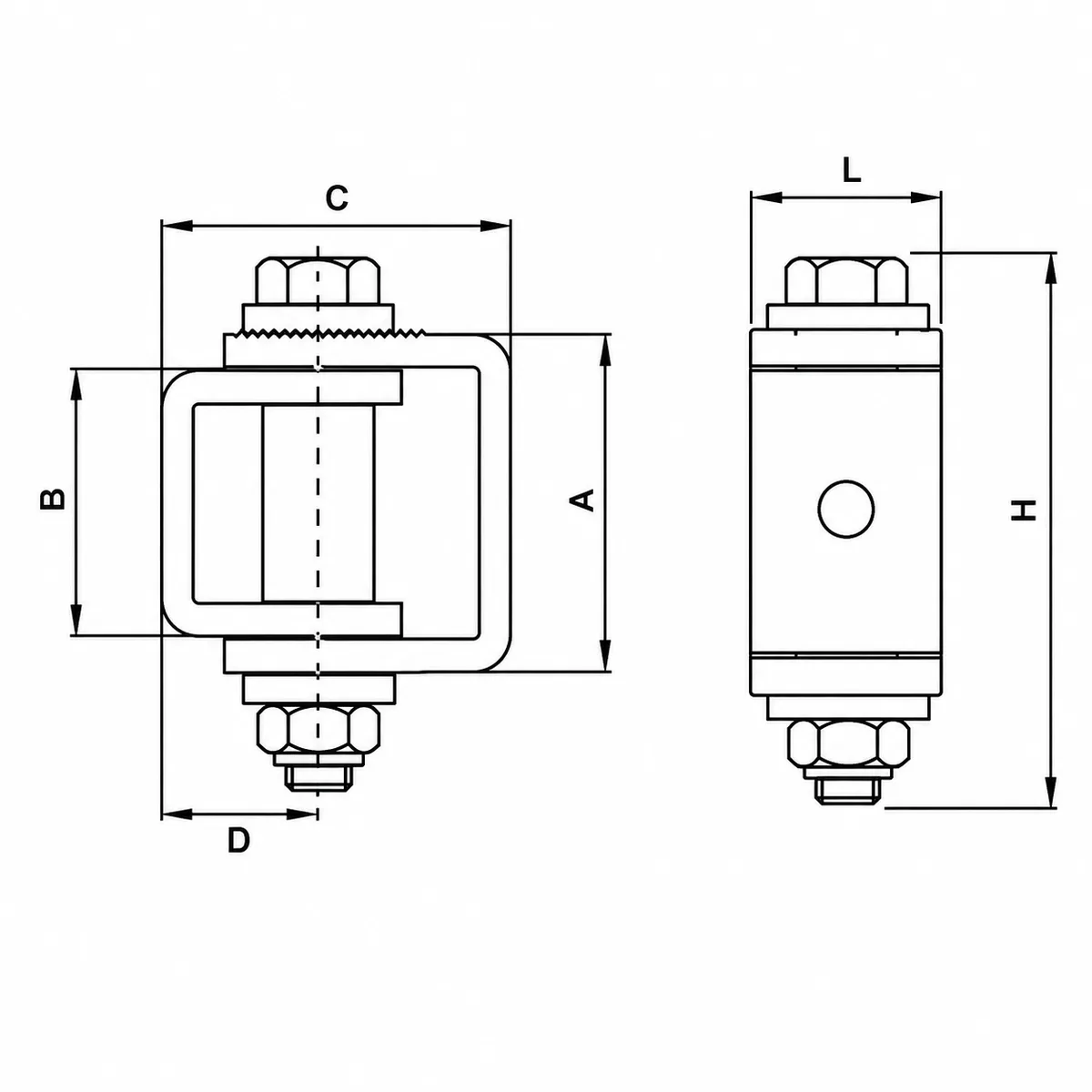

Specifications
- Model: 886/1
- Material: Galvanised steel
- A: 45 mm
- B: 30 mm
- C: 59,79-62 mm
- D: 28.5 mm
- H: 77 mm
- L: 30 mm
- Max load: 150 kg per pair
- Weight: 410 g

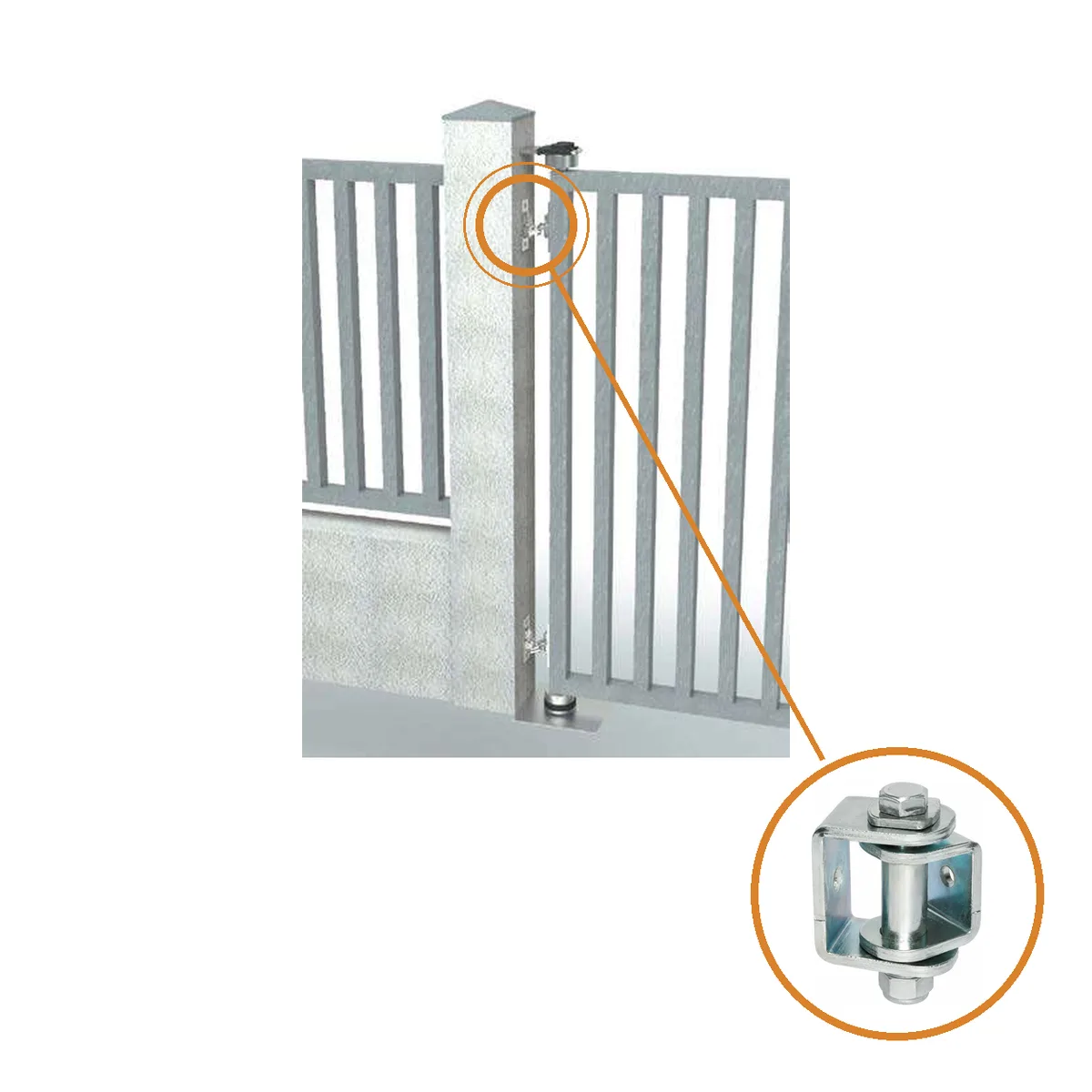

Applications
- Tube-frame gates
- Farm and rural gates
- Swing gates
- Garden gates
