Swing Gate Hardware
Heavy-Duty Pedestrian Swing Gate Hinge

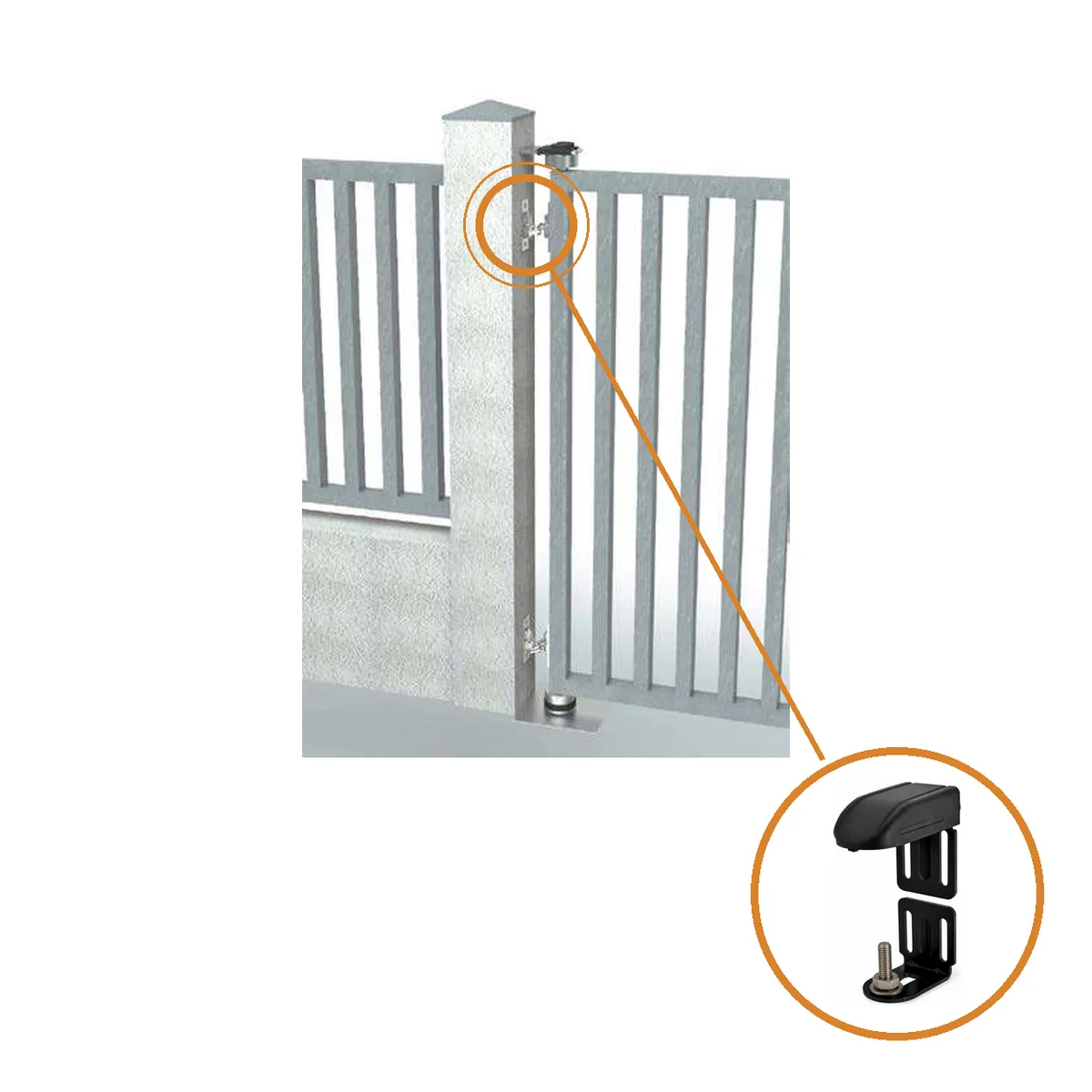

This black-finished pintle hinge suits pedestrian gates and smaller gate leaves ('gatelets'), combining a strap-style gate fitting with an M14 post-side pin. The slotted strap allows adjustment to the gate frame during installation.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This black-finished pintle hinge suits pedestrian gates and smaller gate leaves ('gatelets'), combining a strap-style gate fitting with an M14 post-side pin. The slotted strap allows adjustment to the gate frame during installation.
Galvanised steel beneath the black finish gives lasting corrosion protection with a clean look on dark gates and fences.
Key Features
- Pintle hinge for pedestrian gates and small leaves
- Black finish over galvanised steel
- Slotted strap for installation adjustment
- M14 post-side pin

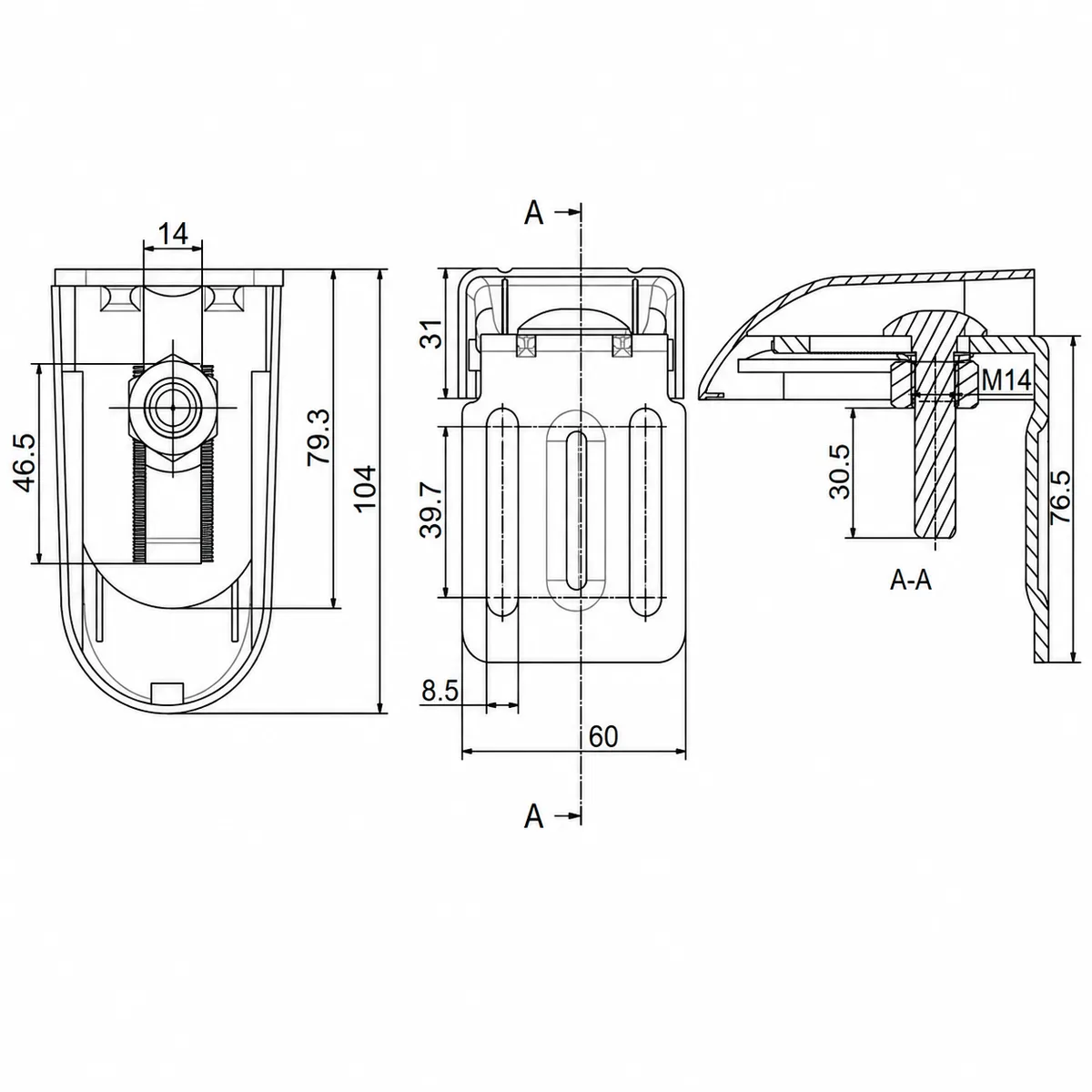

- Body 60 x 104 mm
- Simple bolt-on fitting
Specifications
- Model: 926/N
- Material: Galvanised steel, black finish
- Body: 60 x 104 mm
- Pin fixing: M14
- Strap height: 46.5 mm
- Weight: 620 g
Applications
- Pedestrian gates
- Garden gates and gatelets
- Residential gate systems
