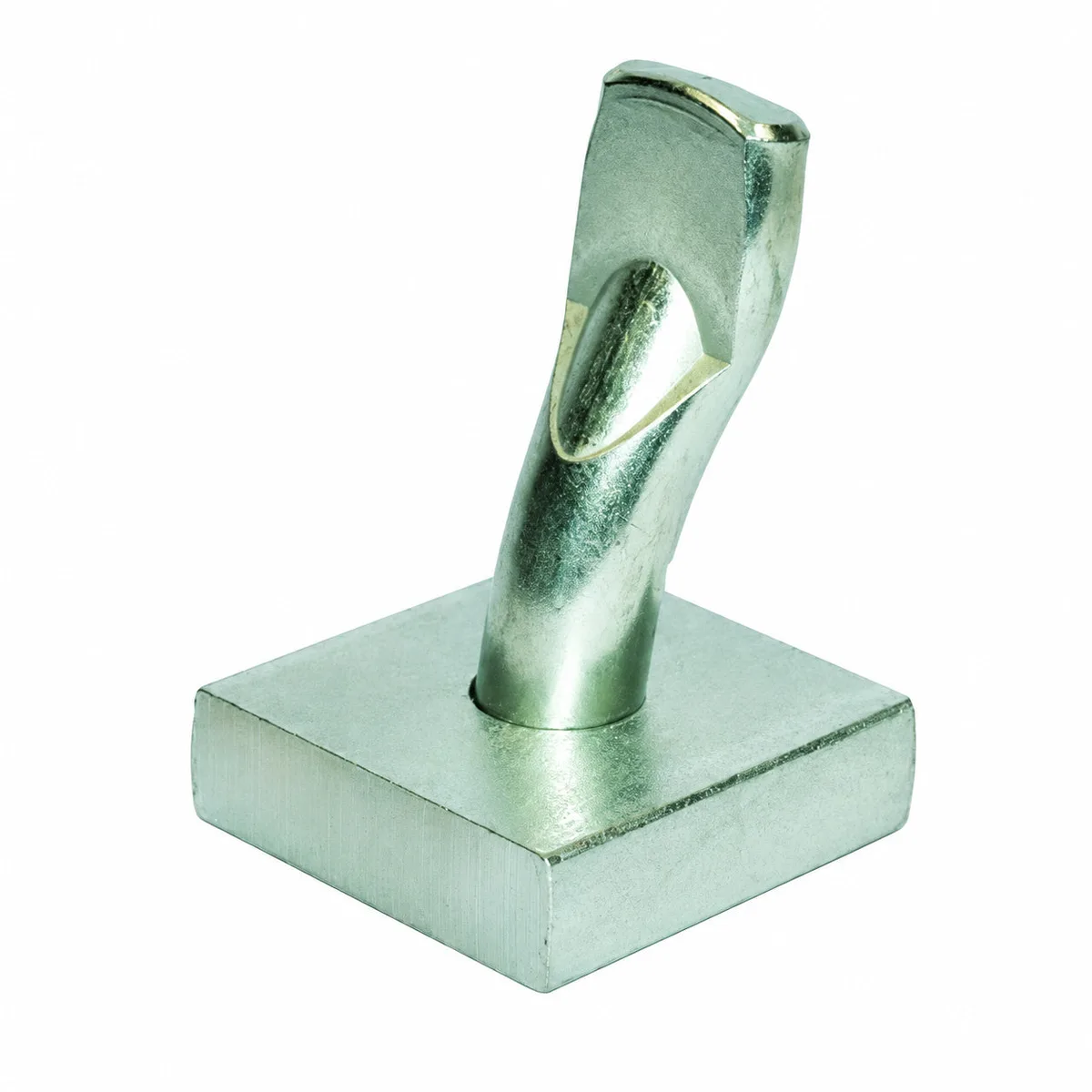

Pratico 180° Gate Hinge Bottom Pin & Plate Assembly - M18

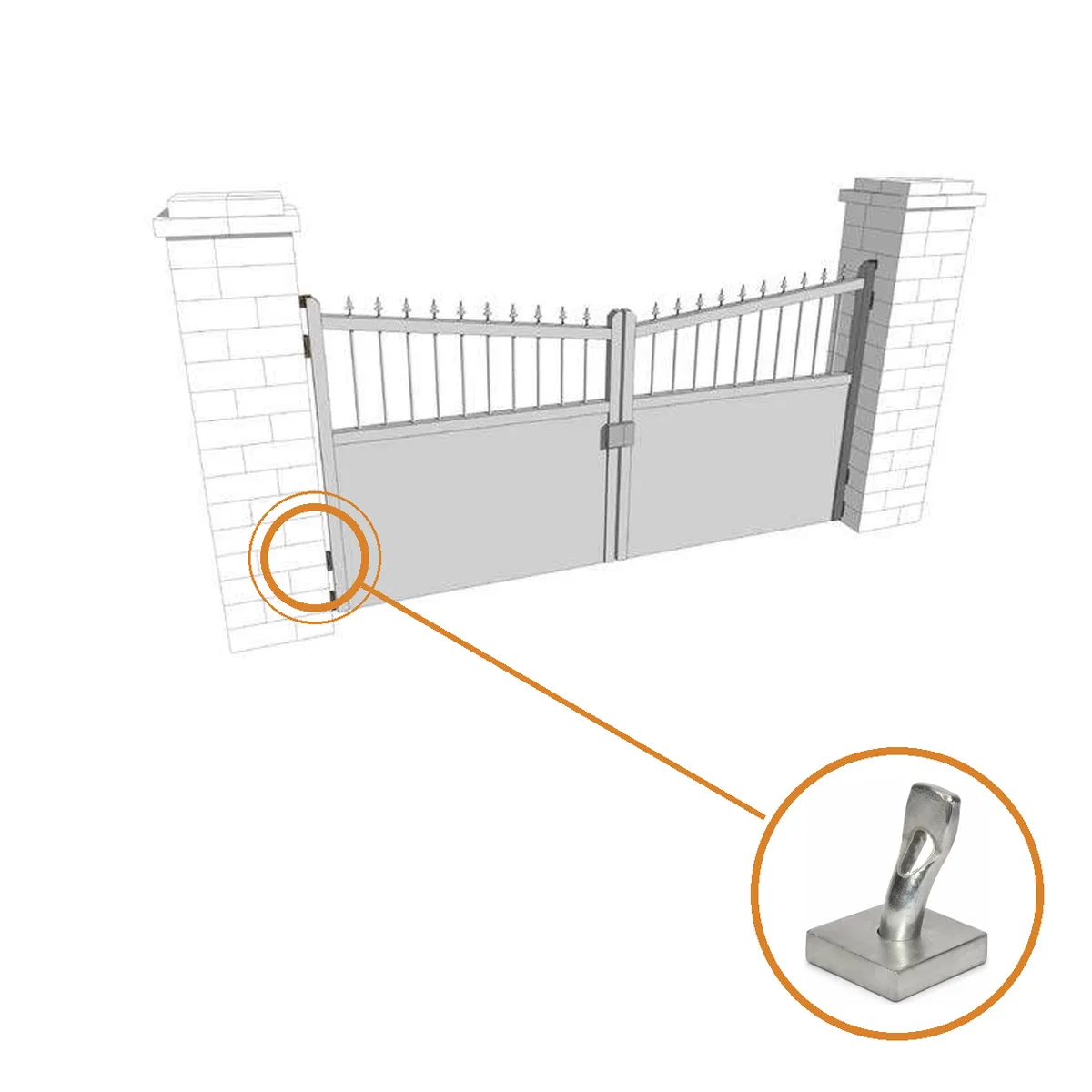

This bottom pin and plate carries the lower pivot of a swing gate in the PRATICO® system. The 18 mm pin seats in the gate's lower hinge socket while the plate fixes to the post or pier, giving the gate a solid, smooth-turning base pivot.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This bottom pin and plate carries the lower pivot of a swing gate in the PRATICO® system. The 18 mm pin seats in the gate's lower hinge socket while the plate fixes to the post or pier, giving the gate a solid, smooth-turning base pivot.
Galvanised steel construction provides lasting outdoor durability on residential, commercial and industrial gates.
Key Features
- Bottom pivot pin (18 mm) with mounting plate
- Part of the PRATICO® swing gate hinge system
- Galvanised steel construction
- Solid, smooth-turning base pivot for the gate
- Pairs with PRATICO® adjustable top hinges
- Suits residential, commercial and industrial gates

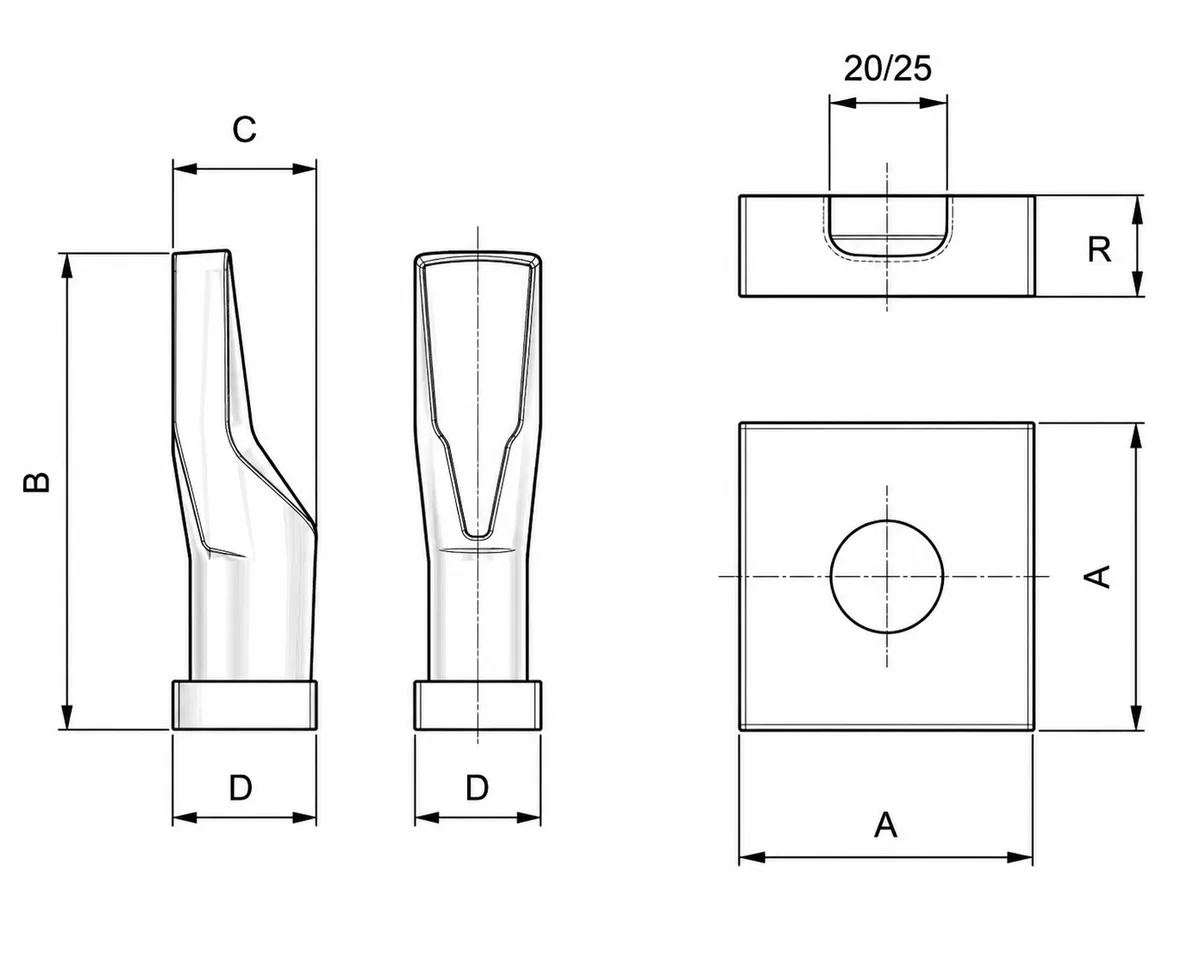

Specifications
- Model: 827/18
- Material: Galvanised steel
- Pin size: 18 mm
- A: 60 mm
- B: 97 mm
- C: 37 mm
- D: 20 mm
- I: 27 mm
- Weight: 620 g
Applications
- Swing gates
- Driveway gates
- Residential gate systems
- Commercial gate installations
- Industrial gate systems
- Steel and aluminium gates
