Pratico Bolt-On Hinge Mounting Plate for Pintle Gate Hinge - M20

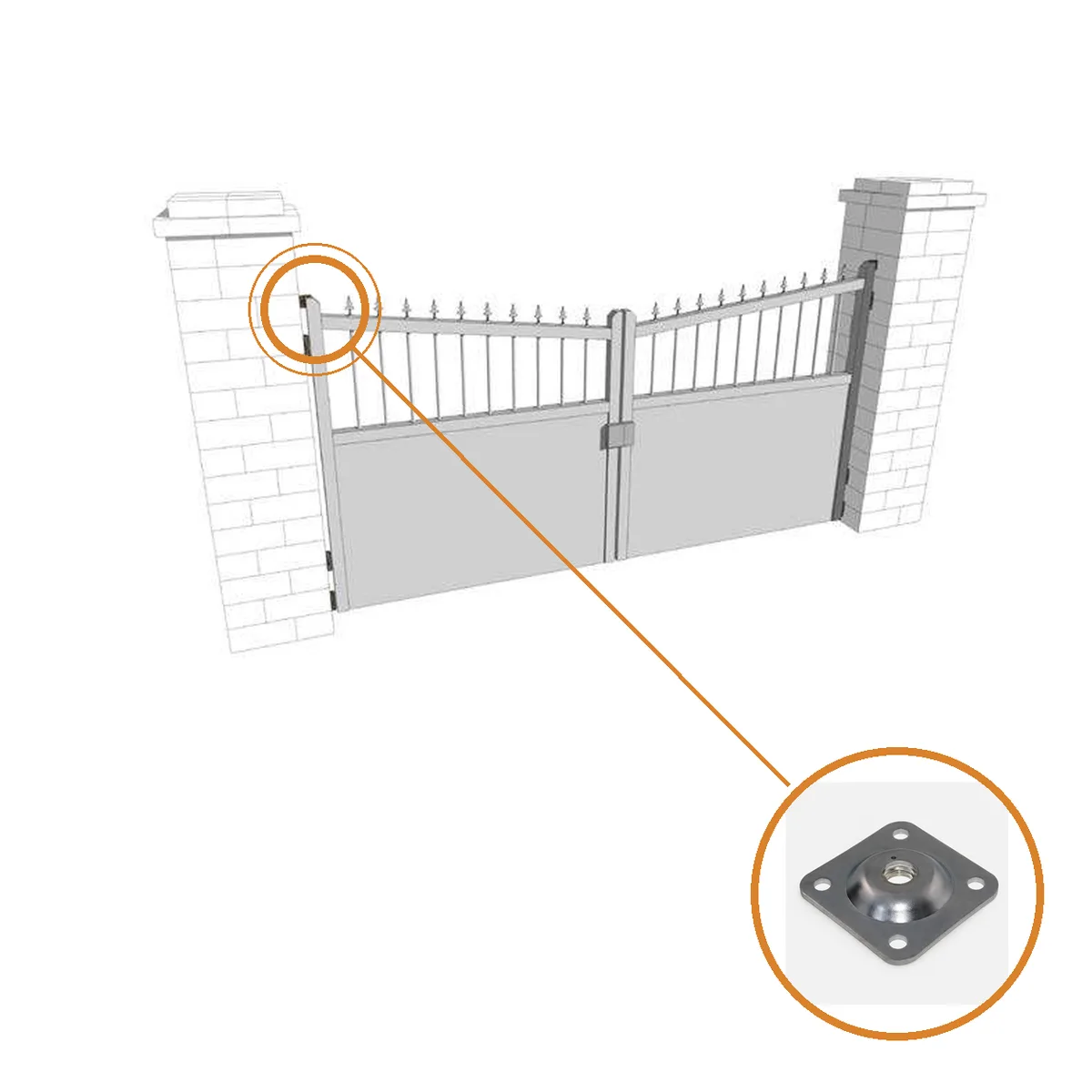

This 100 x 100 mm bolt-down plate mounts PRATICO® M20 adjustable hinges to masonry, brick or concrete posts. Anchor the plate with dowels or chemical anchors, thread in the pintle, and align the gate using the hinge's adjustment range.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This 100 x 100 mm bolt-down plate mounts PRATICO® M20 adjustable hinges to masonry, brick or concrete posts. Anchor the plate with dowels or chemical anchors, thread in the pintle, and align the gate using the hinge's adjustment range.
Galvanised steel construction stands up to the weather, with a pintle adjustment range of 85-130 mm and reach of 9-55 mm.
Key Features
- Bolt-down mounting plate for PRATICO® M20 hinges
- Anchors to masonry, brick or concrete posts
- Galvanised steel construction
- Plate size 100 x 100 mm
- Pintle adjustment range 85-130 mm / 9-55 mm
- Pairs with PRATICO® adjustable gate hinges
Specifications
- Model: 922.2
- Material: Galvanised steel
- Thread: M20
- Plate: 100 x 100 mm

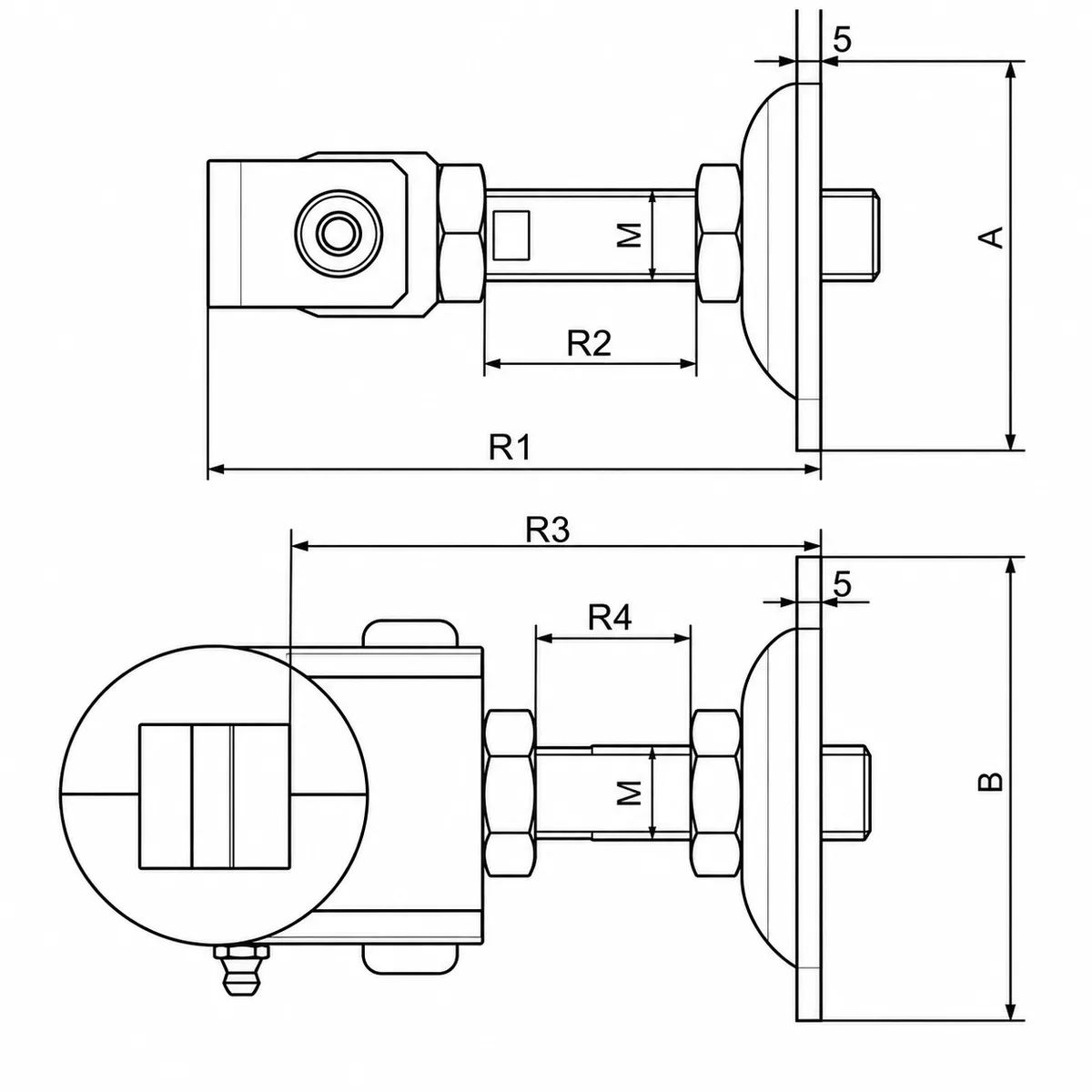

- R1 (adjustment): 85-130 mm
- R2 (adjustment): 9-55 mm
- Weight: 395 g
Applications
- Swing gates on masonry or concrete posts
- Driveway gates
- Residential gate systems
- Commercial gate installations
