Pratico Weld-On Hinge Mounting Plate for Pintle Gate Hinge - M12

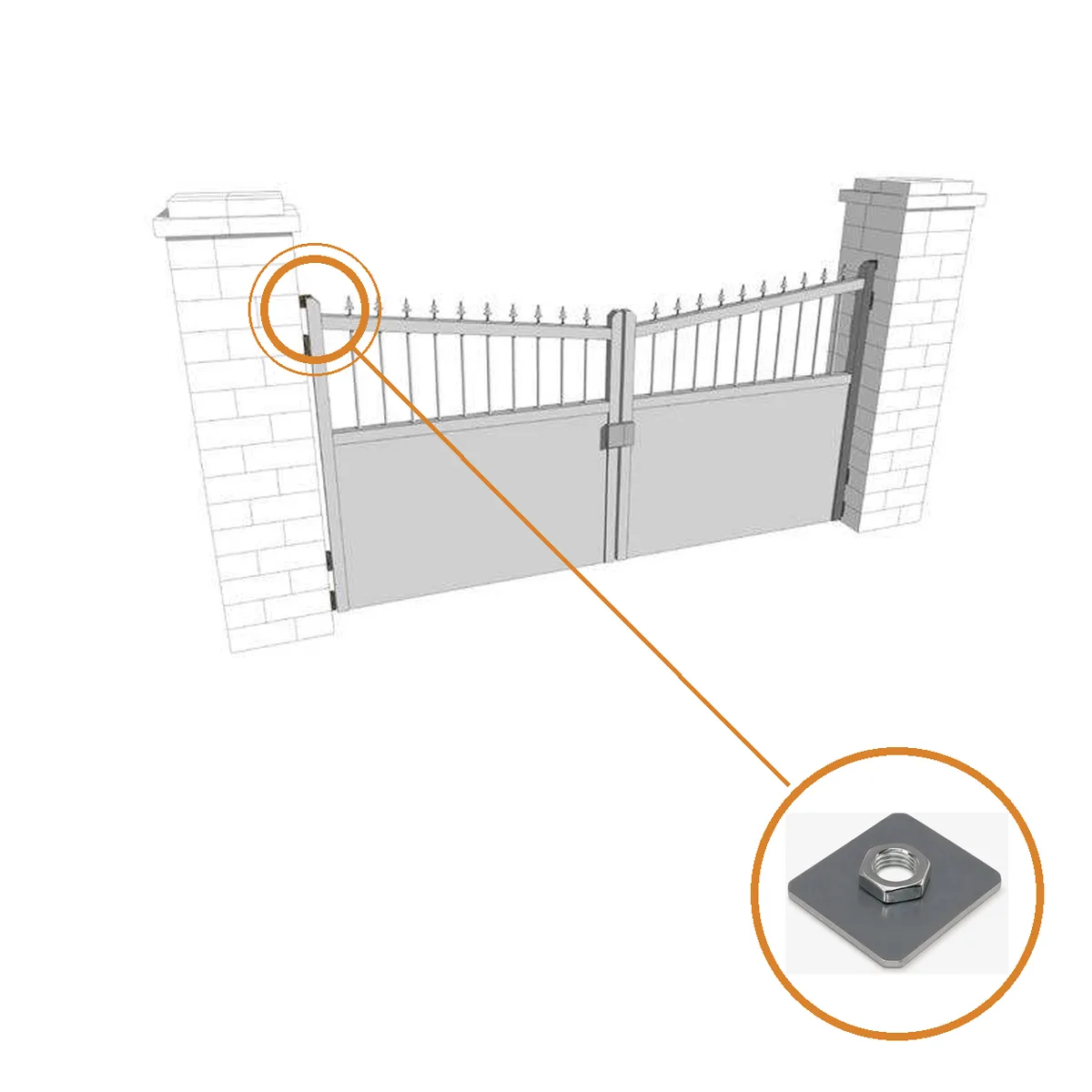

This weld-on plate gives PRATICO® M12 adjustable hinges a strong, ready-made mounting point on steel gate posts. Weld the plate to the post, thread in the PRATICO® pintle, and the hinge's full adjustment range remains available for aligning the gate.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This weld-on plate gives PRATICO® M12 adjustable hinges a strong, ready-made mounting point on steel gate posts. Weld the plate to the post, thread in the PRATICO® pintle, and the hinge's full adjustment range remains available for aligning the gate.

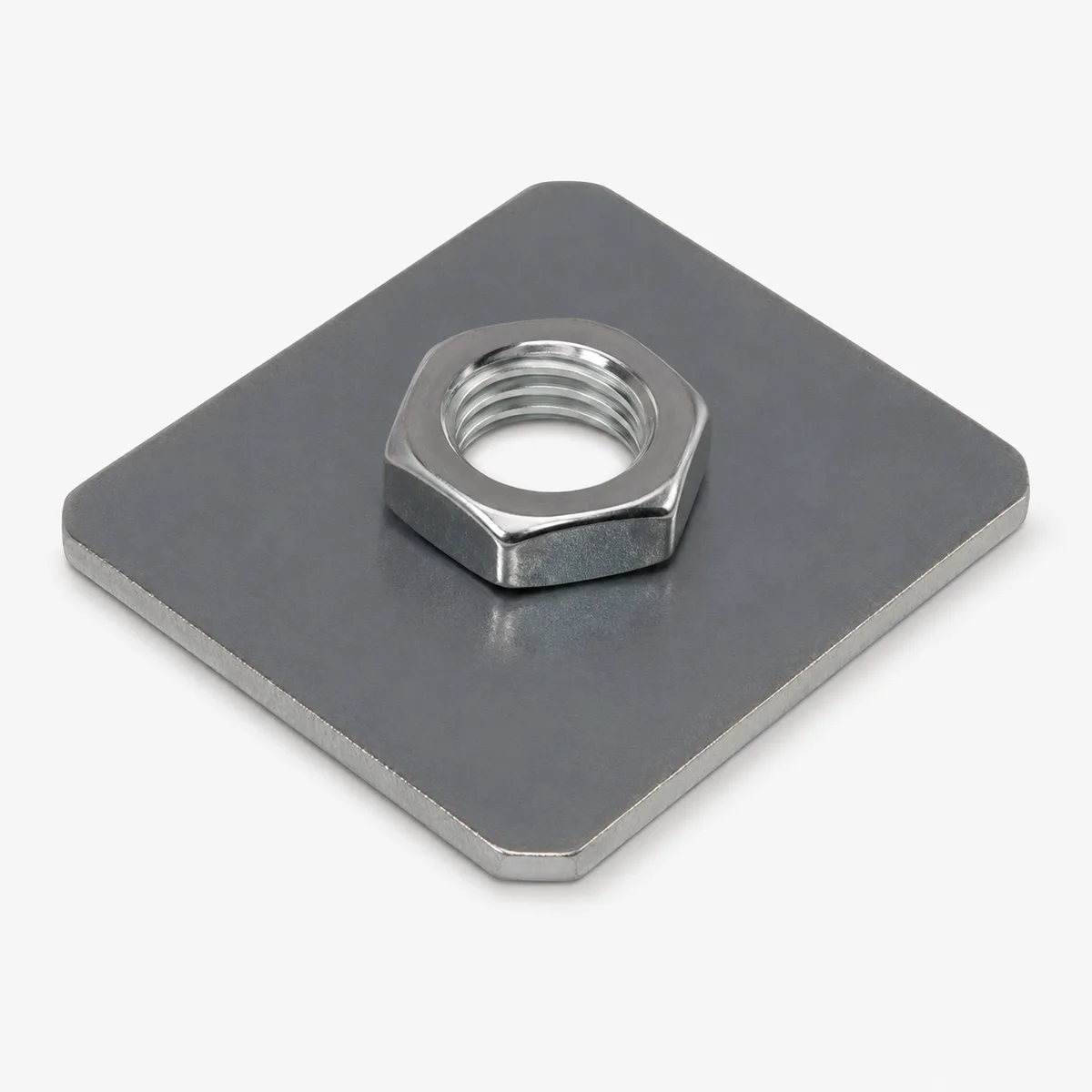

Made from galvanised steel at 60 x 50 mm, it positions the pintle with an adjustment range of 63-94 mm horizontally and 8-40 mm of reach.
Key Features
- Weld-on mounting plate for PRATICO® M12 hinges
- Galvanised steel construction
- Plate size 60 x 50 mm
- Pintle adjustment range 63-94 mm / 8-40 mm
- Fast, strong mounting on steel posts
- Pairs with PRATICO® adjustable gate hinges

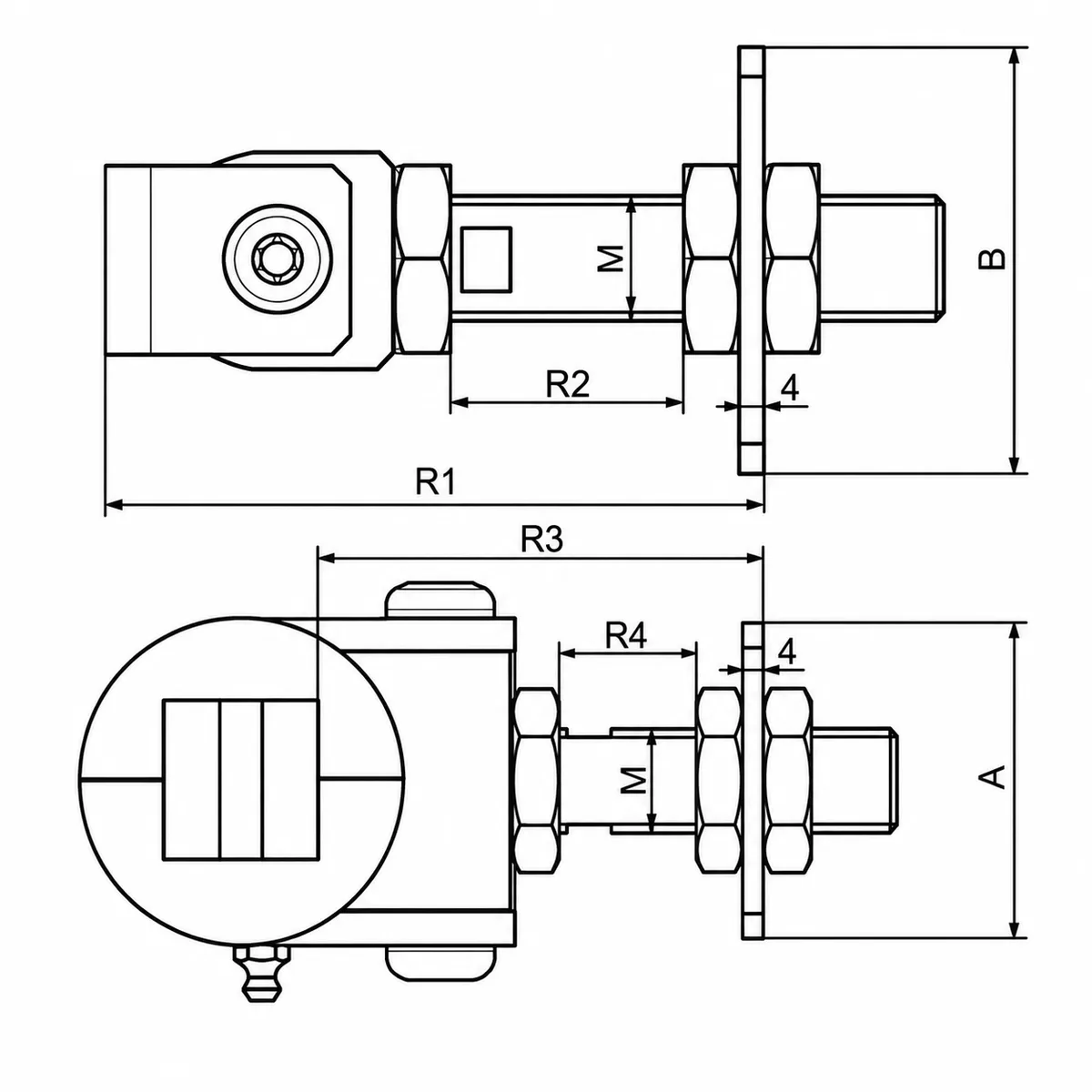

Specifications
- Model: 921.12
- Material: Galvanised steel
- Thread: M12
- A (width): 60 mm
- B (height): 50 mm
- R1 (adjustment): 63-94 mm
- R2 (adjustment): 8-40 mm
- Weight: 100 g
Applications
- Swing gates
- Driveway gates
- Residential gate systems
- Commercial gate installations
- Industrial gate systems
- Steel and aluminium gates
