Swing Gate Hardware
Self-Closing Spring Gate Hinge with Bottom Hinge

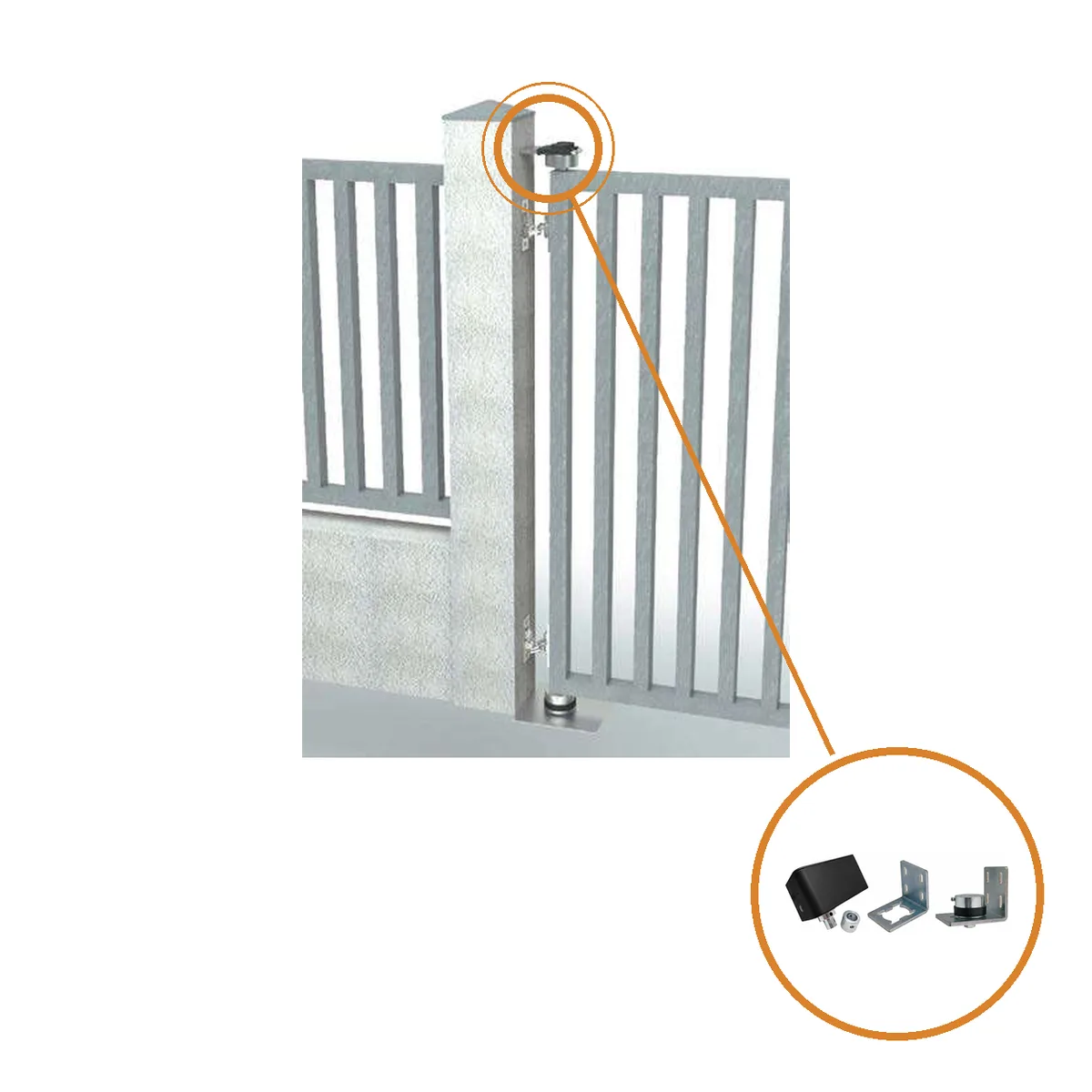

The AGILE spring hinge closes pedestrian gates automatically behind every user, ideal where gates must reliably self-close. This AG20 set includes the spring top hinge and the matching lower pintle hinge.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
The AGILE spring hinge closes pedestrian gates automatically behind every user, ideal where gates must reliably self-close. This AG20 set includes the spring top hinge and the matching lower pintle hinge.
The cataphoresis-treated, powder-coated aluminium body in micaceous black weathers well outdoors, while internal galvanised steel components deliver consistent closing force. Closing speed and force can be tuned to the gate during installation.
Key Features
- Self-closing spring hinge – gate closes automatically
- Supplied complete with lower pintle hinge
- Micaceous black finish over cataphoresis-treated aluminium
- Galvanised steel internal components
- Adjustable closing action to suit the gate
- Suits pedestrian, garden and access-control gates
Specifications
- Model: AG20
- Material: Aluminium body (cataphoresis + powder coat), galvanised steel components
- Finish: Micaceous black
- Body: 120 x 85 mm; fixing range 47-63 mm
- Weight: 2.56 kg (set)
Applications
- Pedestrian gates
- Garden and courtyard gates
- Self-closing access gates
- Commercial entries
