Stainless Steel Spring-Loaded Gate Drop Bolt - Ambidextrous Gate Latch
This stainless steel spring bolt latches gate leaves with a spring-loaded pin that can be fitted left- or right-handed. The 145 mm body mounts to the gate frame and the bolt snaps into a ground socket or keeper to hold the leaf.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This stainless steel spring bolt latches gate leaves with a spring-loaded pin that can be fitted left- or right-handed. The 145 mm body mounts to the gate frame and the bolt snaps into a ground socket or keeper to hold the leaf.
All-stainless construction makes it ideal for coastal sites and anywhere long-term corrosion resistance matters.
Key Features
- Spring-loaded bolt holds the gate leaf positively
- Ambidextrous – fits left or right handed
- Stainless steel construction

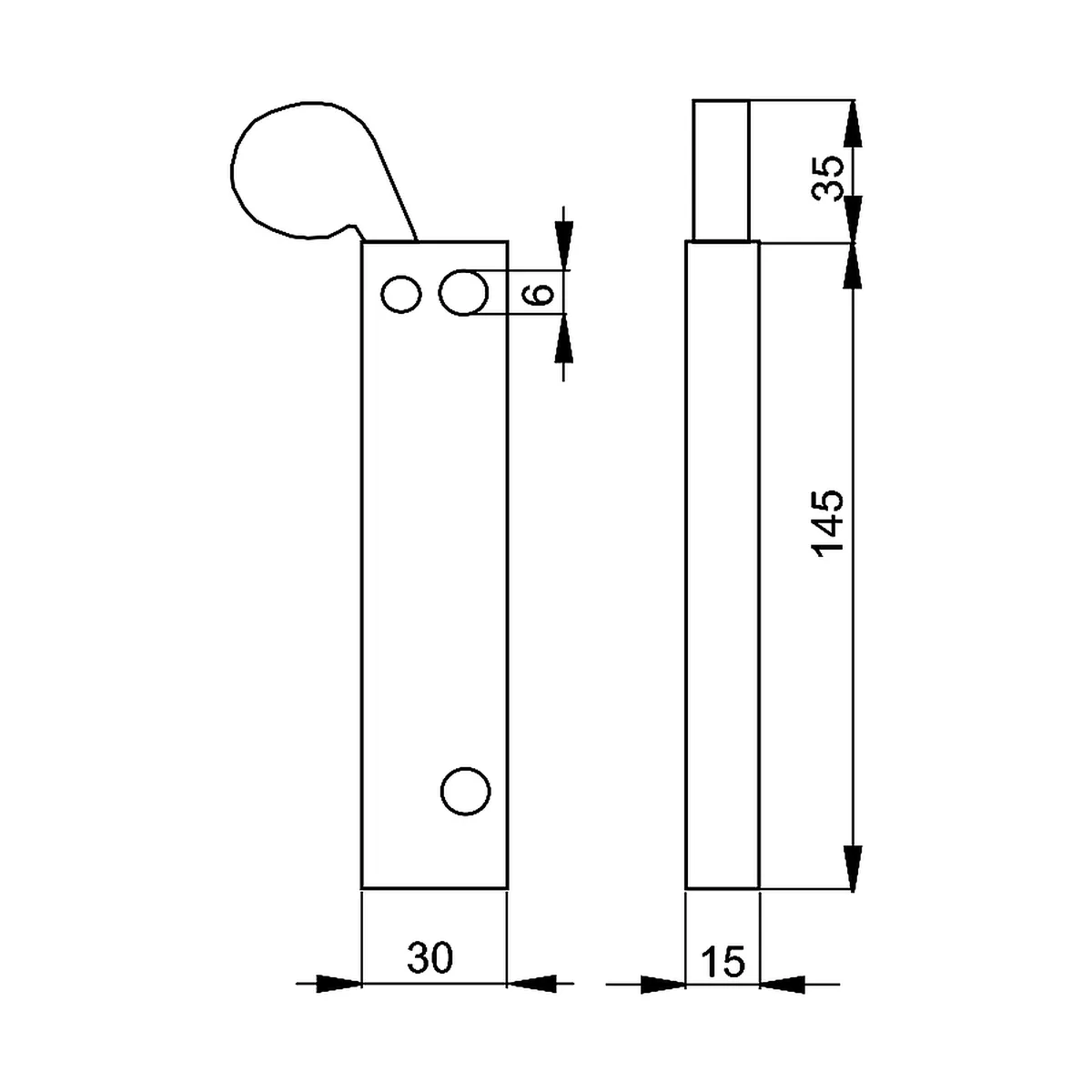

- Body 145 mm, plate 30 mm wide
- Smooth pull-ring operation
- Suits gates, doors and shutters
Specifications
- Model: 265
- Material: Stainless steel (INOX)
- Body length: 145 mm
- Plate width: 30 mm
- Weight: 380 g
Applications
- Swing gates

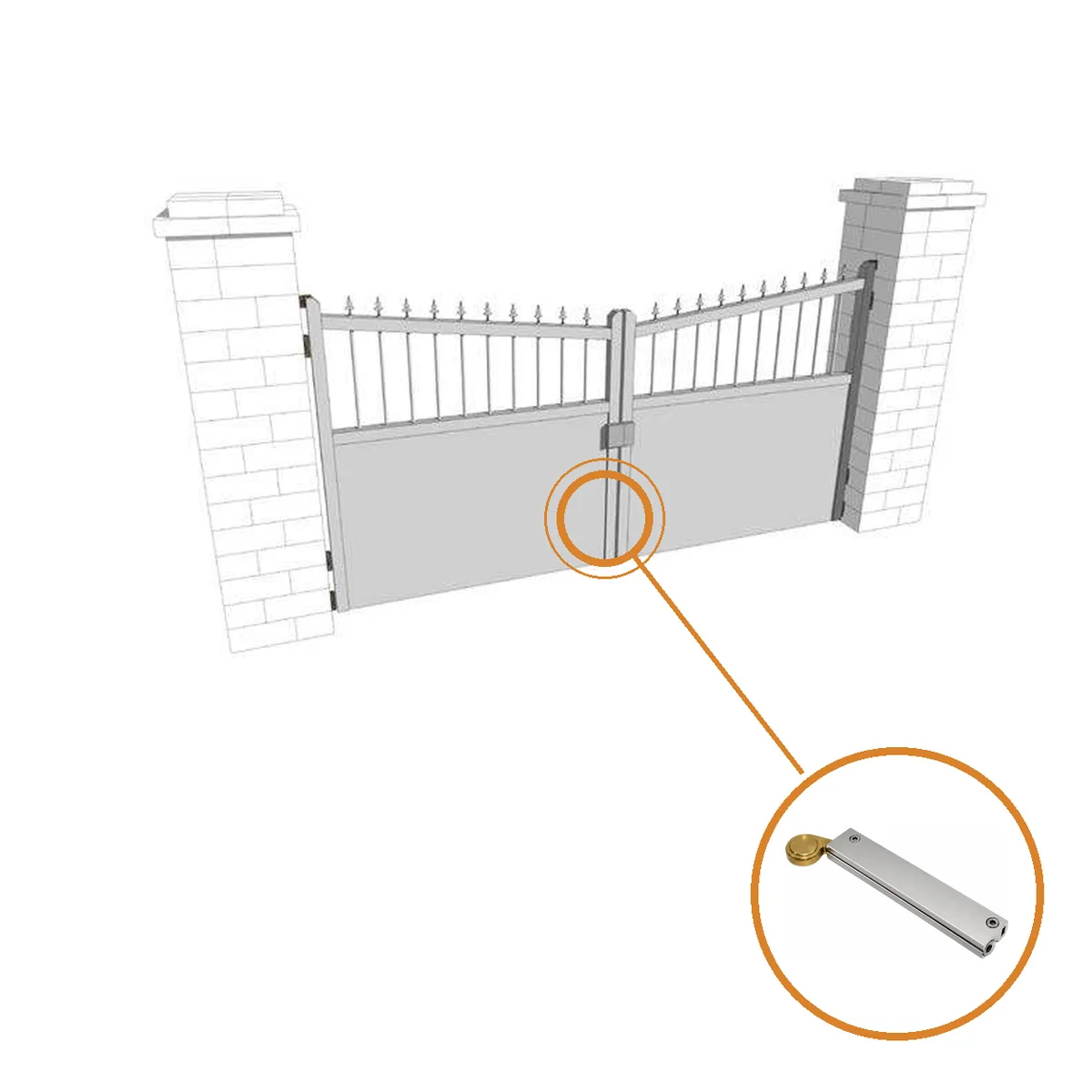

- Double gates (second leaf hold)
- Garden and pedestrian gates
- Shutters and doors
