Swing Gate Hardware

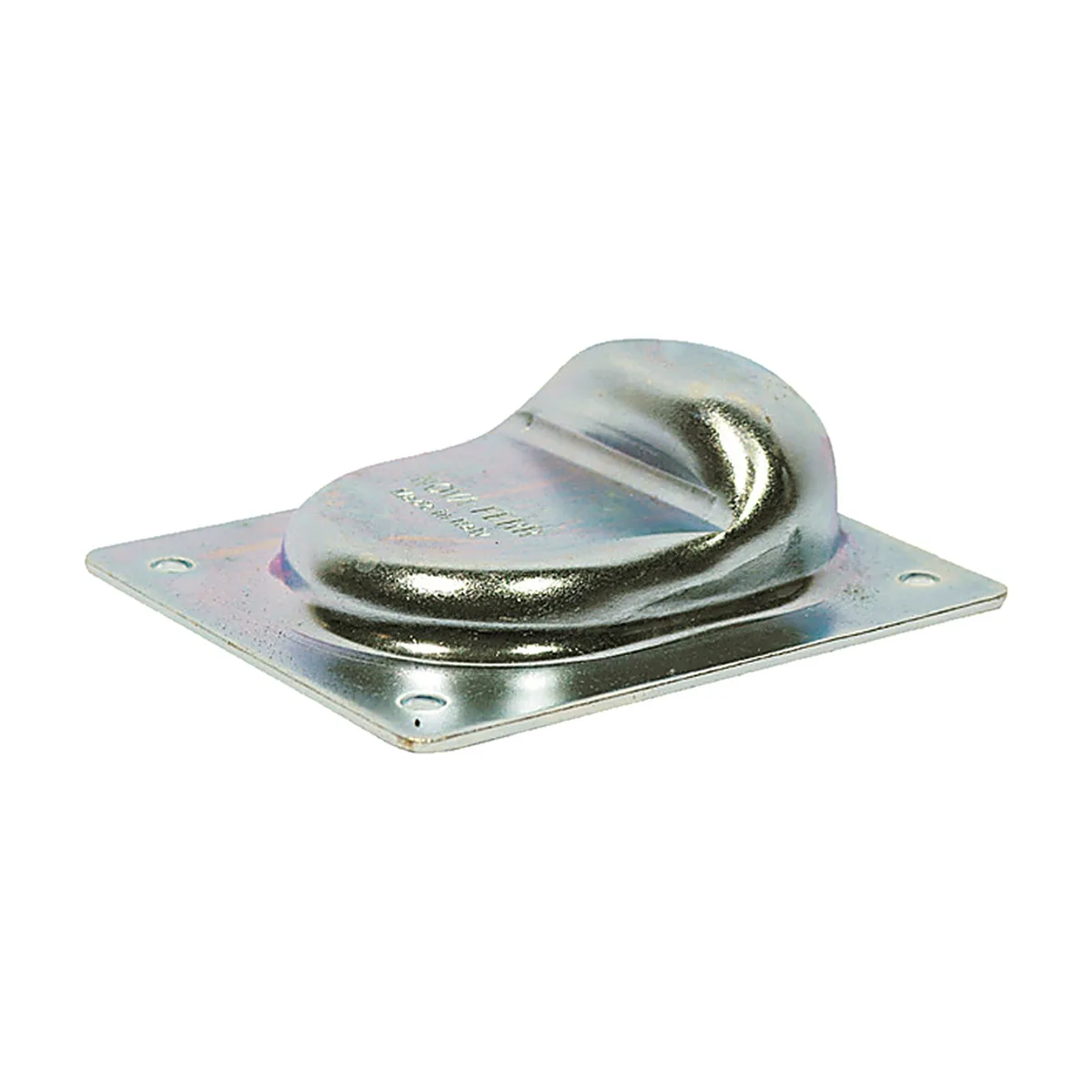

Steel Screw-Fix Ground Swing Gate Stop
This screw-on ground stop gives swing gate leaves a positive closed position, taking wind load off the lock or drop bolt. The raised hook profile catches the gate leaf while the 100 x 122 mm plate bolts to the ground or threshold.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This screw-on ground stop gives swing gate leaves a positive closed position, taking wind load off the lock or drop bolt. The raised hook profile catches the gate leaf while the 100 x 122 mm plate bolts to the ground or threshold.
Galvanised steel construction handles driveway conditions and weather for years of service.
Key Features
- Positive closed-position stop for swing gates
- Bolt-down fitting – no welding or concreting
- Galvanised steel construction
- Plate 100 x 122 mm
- Low profile to minimise trip hazard
- Suits single and double swing gates
Specifications
- Model: 250
- Material: Galvanised steel
- Plate: 100 x 122 mm
- Height: 34 mm (66 mm overall)
- Weight: 270 g
Applications

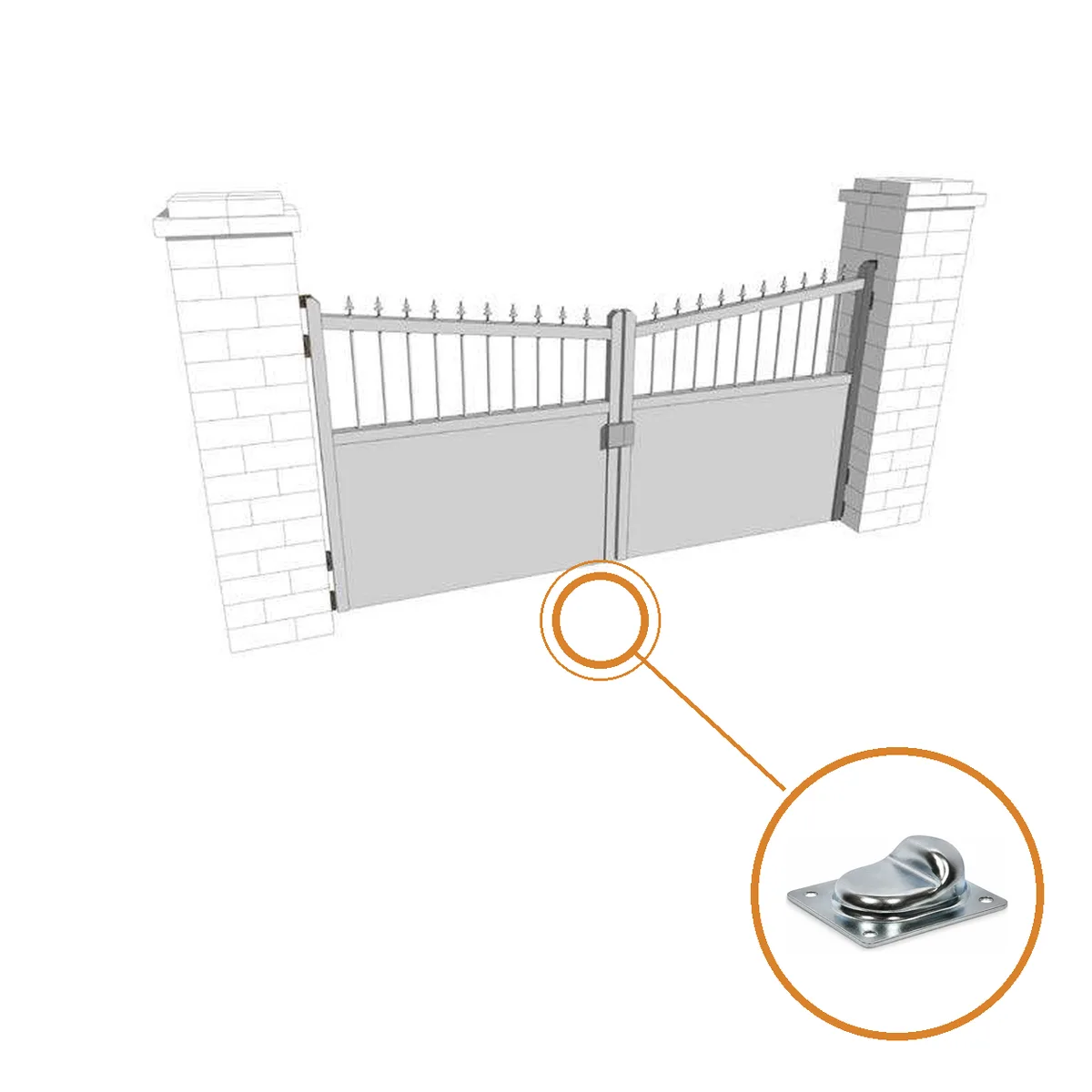

- Swing gates
- Double driveway gates
- Pedestrian gates
