Swing Gate Hardware
Swing Gate Anti-Drop Safety Device – Galvanised Steel Safety Retainer

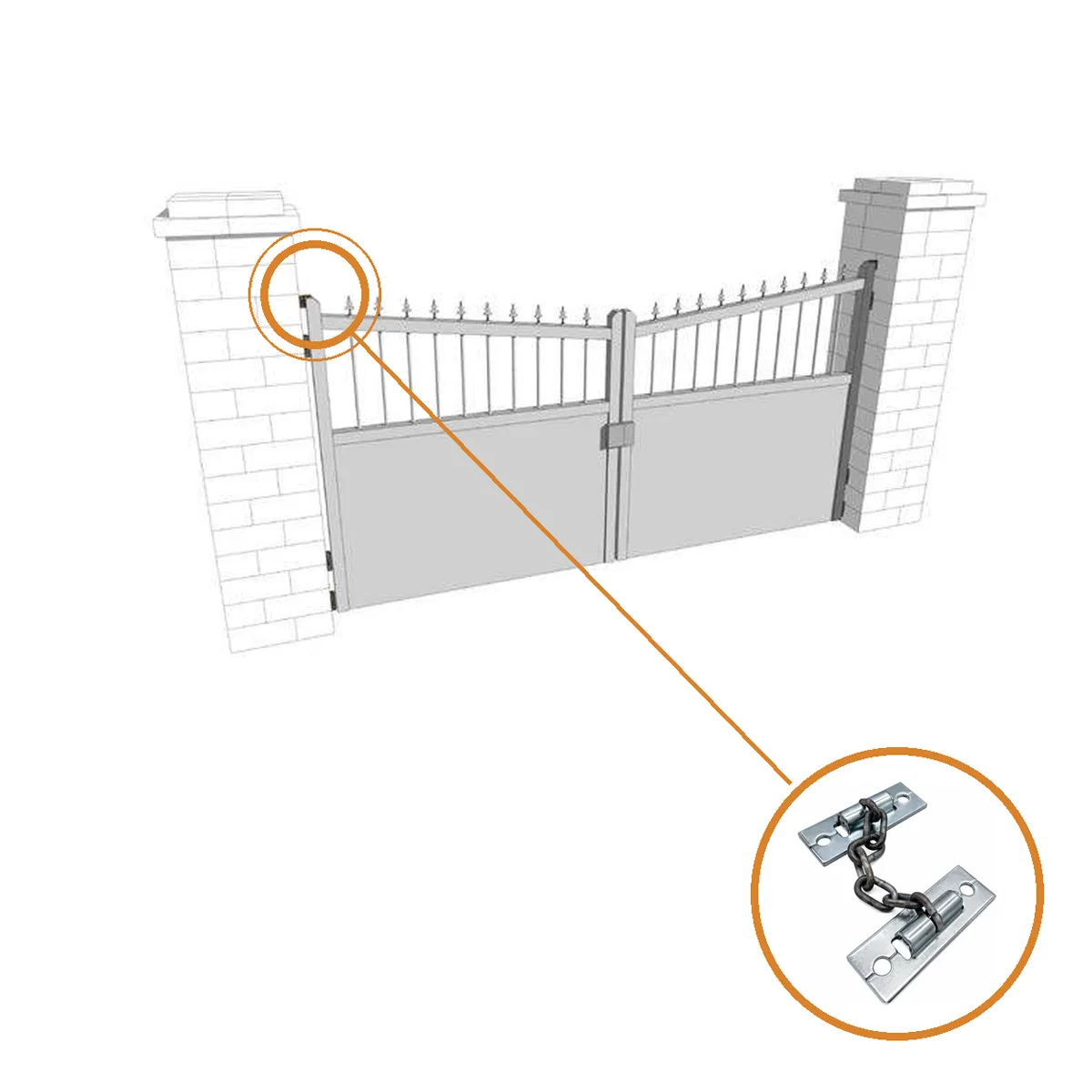

This anti-fall safety device acts as a secondary restraint for gate leaves: if a hinge, pintle or pivot fails, the chain link keeps the leaf attached to the post instead of falling. A simple, inexpensive safeguard for gates in public and high-traffic areas.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This anti-fall safety device acts as a secondary restraint for gate leaves: if a hinge, pintle or pivot fails, the chain link keeps the leaf attached to the post instead of falling. A simple, inexpensive safeguard for gates in public and high-traffic areas.

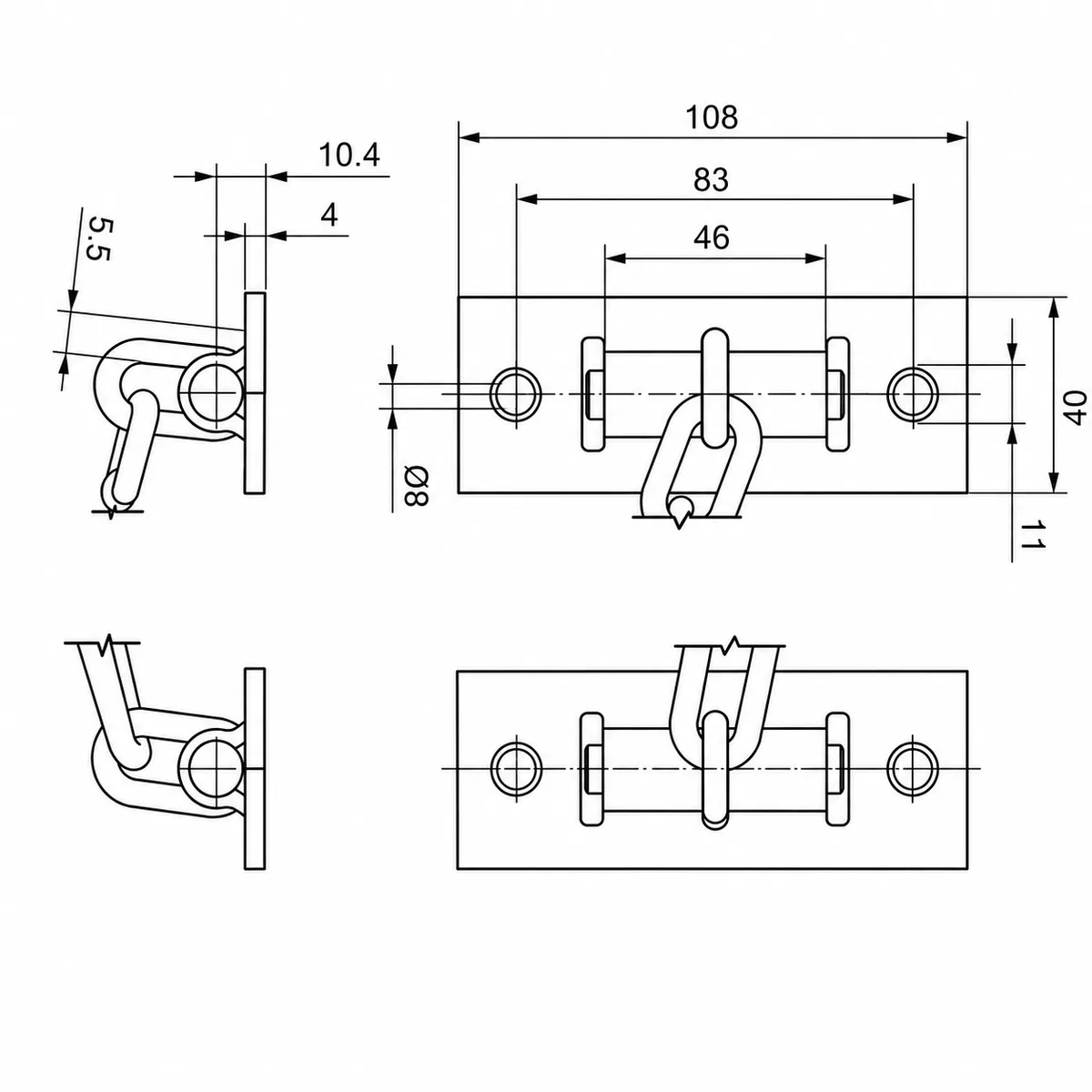

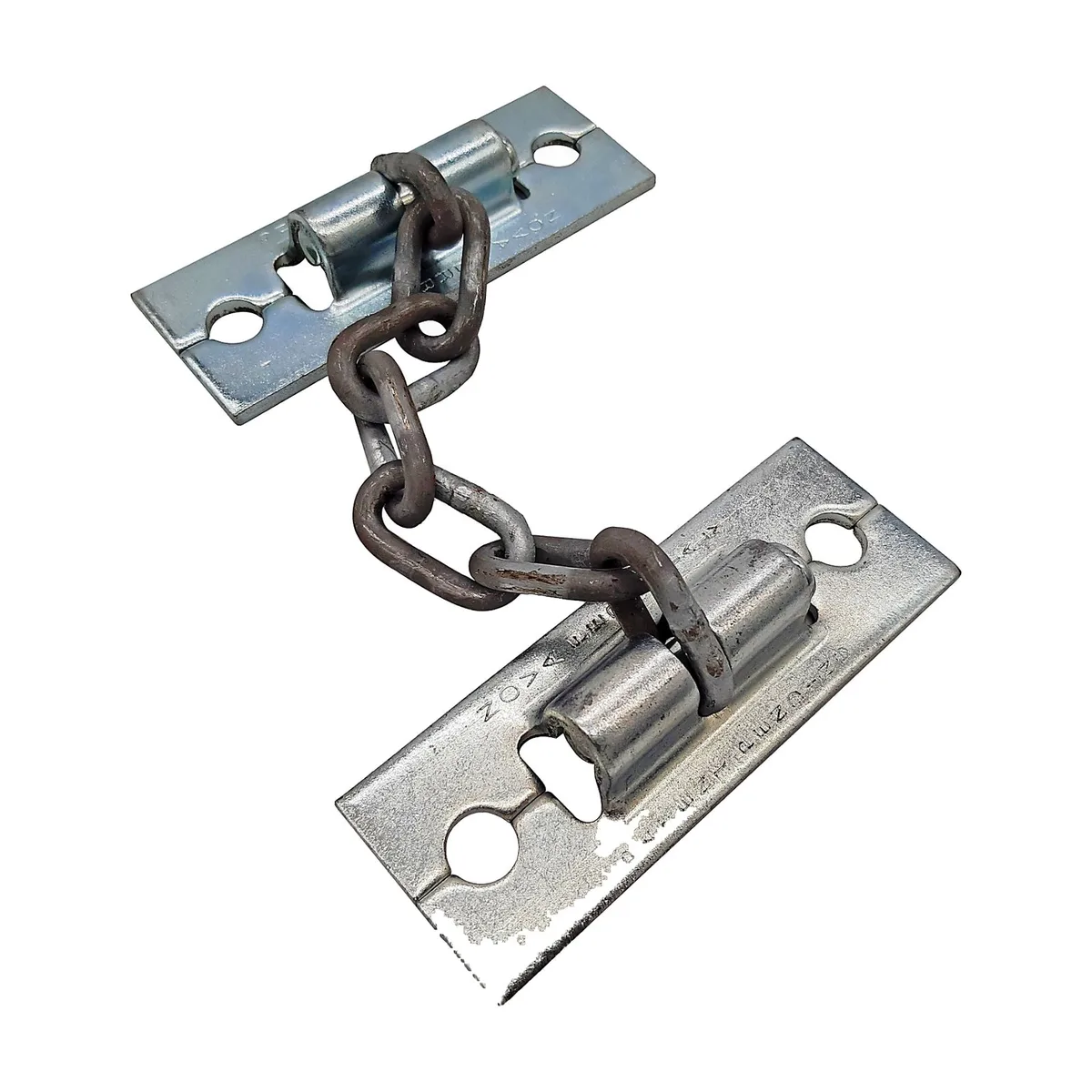

Galvanised steel plates and chain bolt to the gate and post; the 108 mm slotted plates allow alignment during fitting.
Key Features
- Secondary safety restraint for gate leaves
- Prevents the leaf falling if a hinge or pivot fails
- Galvanised steel plates and chain
- Plate 108 x 40 mm with slotted holes
- Simple bolt-on installation
- Recommended for gates in public areas
Specifications
- Model: 253
- Material: Galvanised steel
- Plate: 108 x 40 mm
- Fixing: slotted holes, Ø8 mm
- Weight: 430 g
Applications
- Swing gates in public areas
- Commercial gate installations
- Schools, parks and shared driveways
- Industrial gates
