Cantilever Gate Hardware
Basic Cantilever Sliding Gate Hardware Kit
The Basic Cantilever Sliding Gate Hardware Kit contains the complete running gear for a self-supporting (cantilever) sliding gate built on the small Basic guide track. Cantilever gates ride above the ground with no floor track, making them ideal for driveways with uneven surfaces, snow, gravel or debris.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
The Basic Cantilever Sliding Gate Hardware Kit contains the complete running gear for a self-supporting (cantilever) sliding gate built on the small Basic guide track. Cantilever gates ride above the ground with no floor track, making them ideal for driveways with uneven surfaces, snow, gravel or debris.

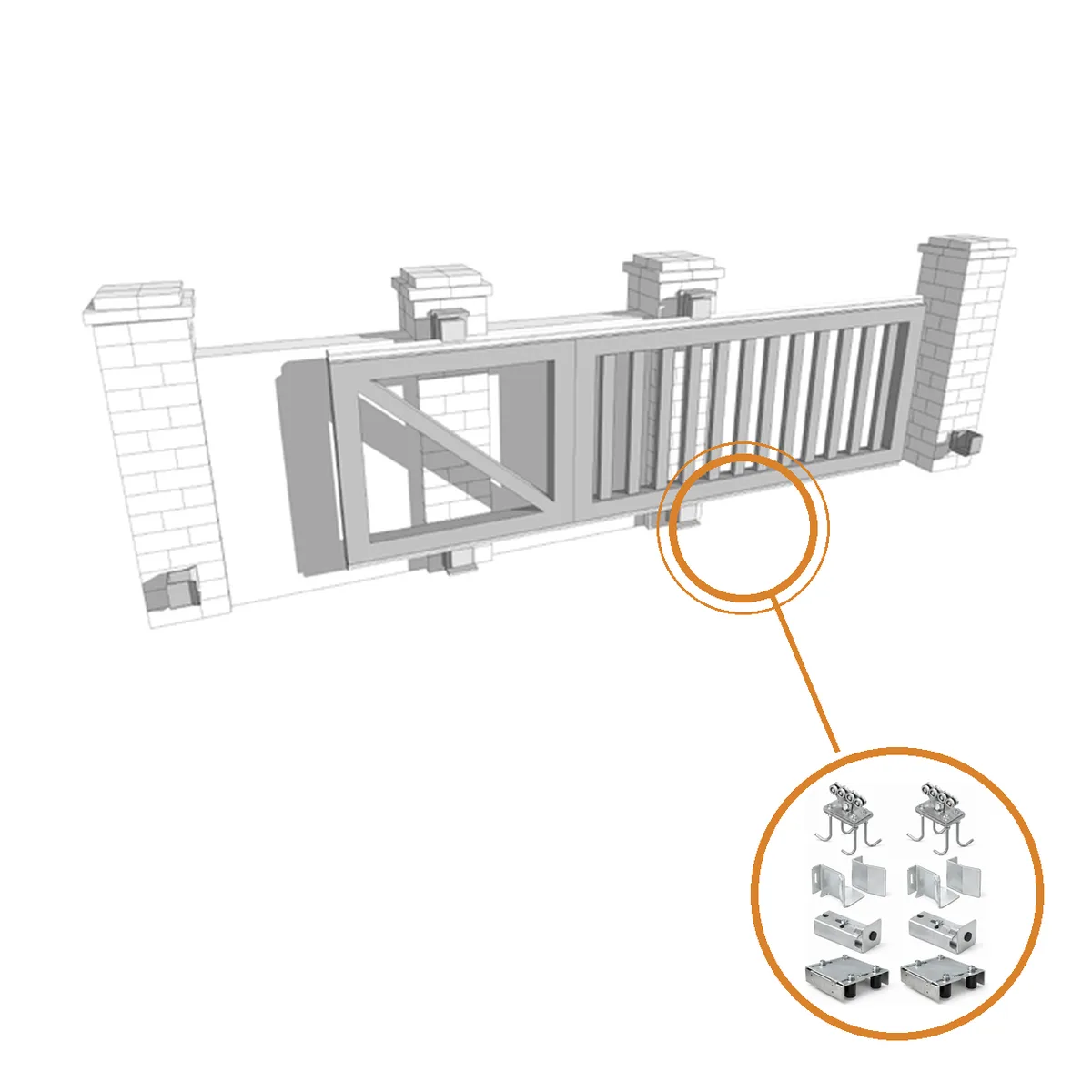

The kit includes the carriage assemblies that carry the gate, end support components, gate stops and top guide rollers — everything needed to hang and guide the gate on the matching small guide profile. Pair it with our Basic cantilever guide track (RP000382) to complete the system.
Key Features
- Complete hardware kit for self-supporting (cantilever) sliding gates
- Basic size – designed for the small 60 x 65 mm guide track profile
- No ground track required – ideal for uneven or debris-prone driveways
- Includes carriages, end supports, stops and top guide rollers
- Suits lighter residential cantilever gates
- Pairs with Basic cantilever guide track (RP000382)
Specifications
- Model: 855/1 (Basic Kit)
- Suits: Small (Basic) cantilever guide track 60 x 65 mm (857/1)

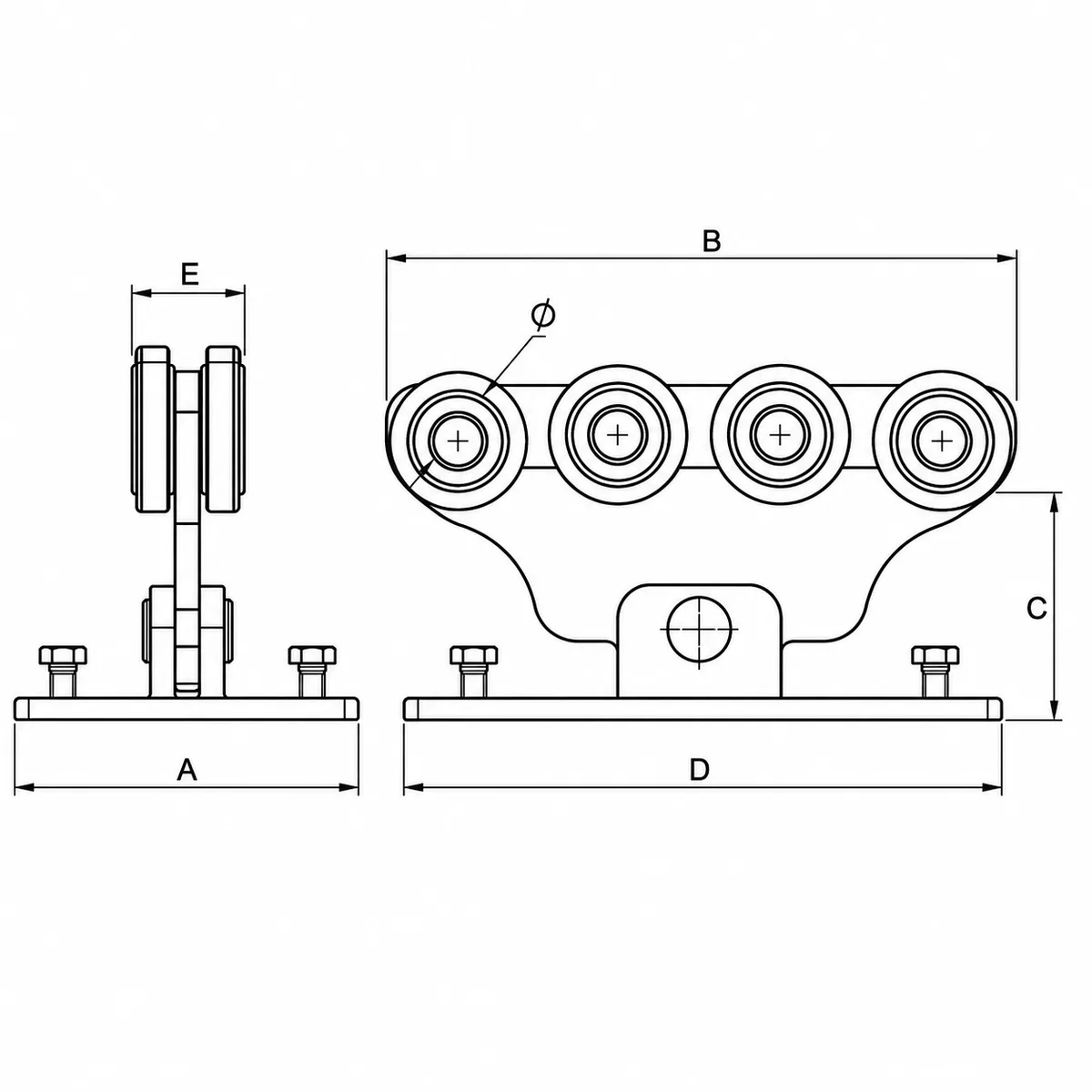

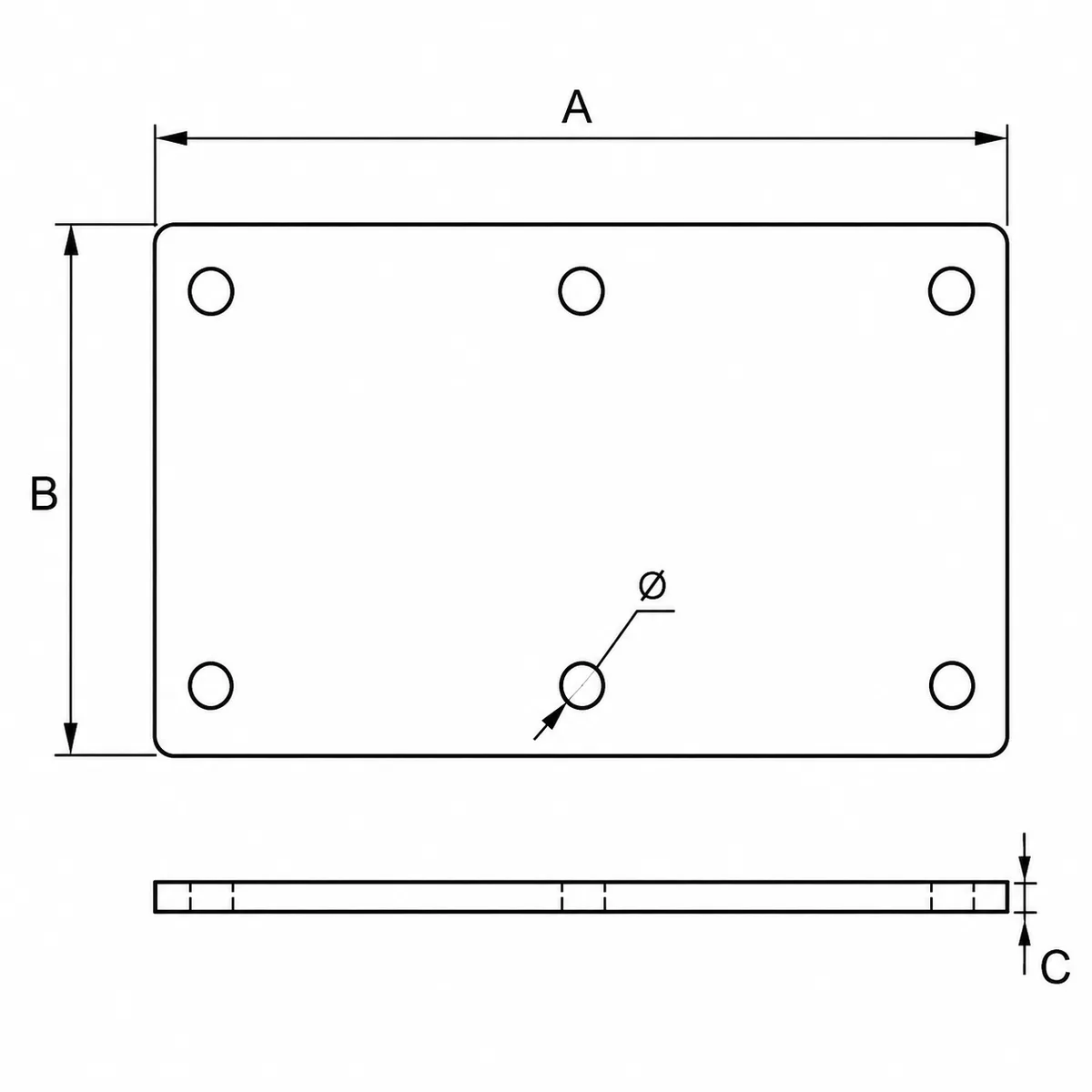

- Kit contents: 2 x carriage assembly (850/1), 2 x end support (851/1), 8 x fixing component (853), 2 x support (854/1), 2 x gate stop (852/1), 2 x top guide roller set (153/4)
- Weight: approx. 24.9 kg complete
Applications
- Cantilever (self-supporting) sliding gates
- Residential driveway gates
- Sites where an in-ground track is impractical
