Cantilever Gate Guide Track 3m – Basic

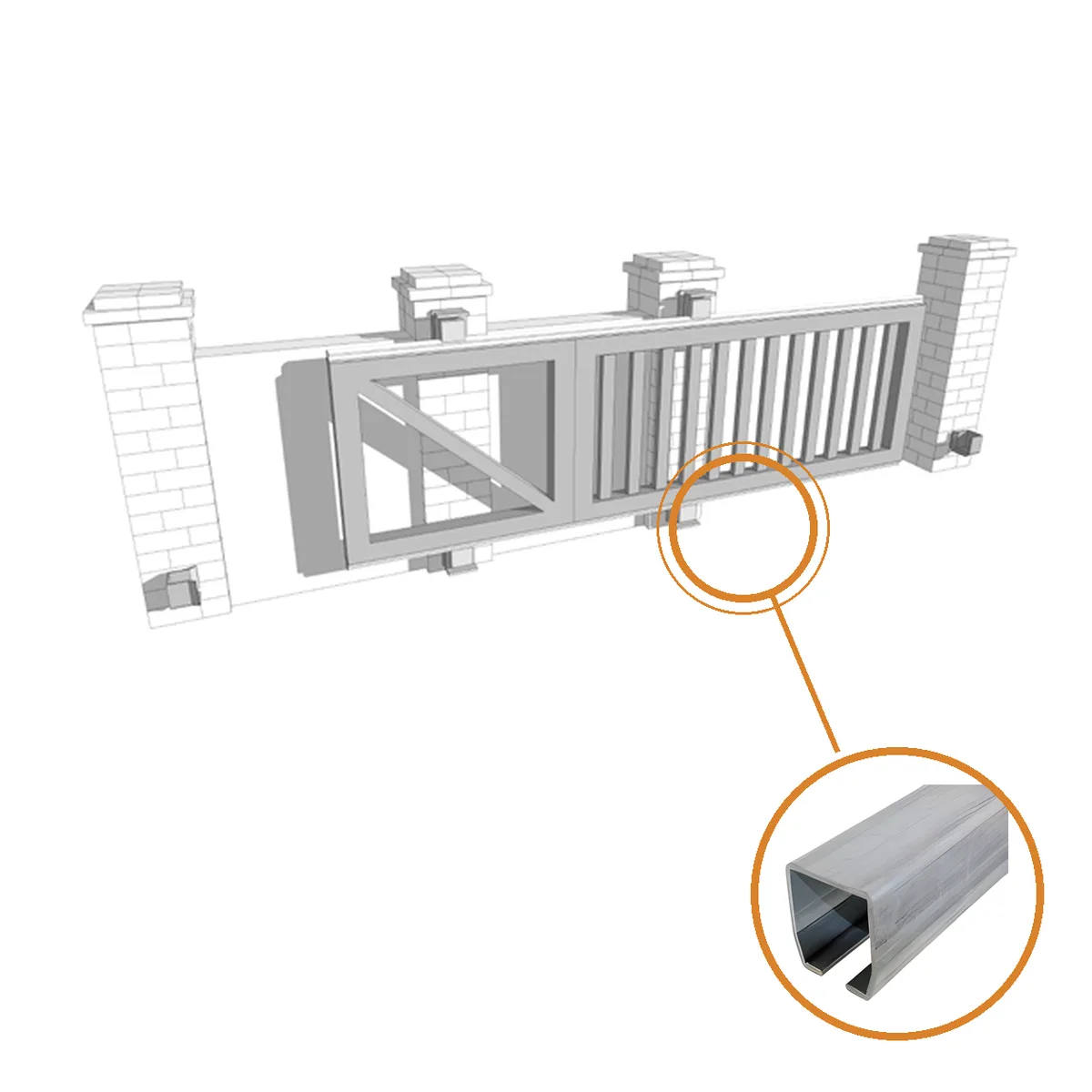

This Basic cantilever gate guide track is the running rail for self-supporting sliding gates, welded to the bottom of the gate frame to carry it over the carriage wheels with no ground track required.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This Basic cantilever gate guide track is the running rail for self-supporting sliding gates, welded to the bottom of the gate frame to carry it over the carriage wheels with no ground track required.
Manufactured from high-yield micro-alloyed galvanised steel, cold-formed to DIN EN 10346 / DIN EN 10143, the track delivers a precise profile, excellent strength-to-weight ratio and long-term corrosion resistance. The Basic 60 x 65 mm profile suits lighter cantilever gates, and matches the Basic cantilever hardware kit (RP000379).
Key Features
- Guide track for self-supporting (cantilever) sliding gates
- High-yield micro-alloyed steel, cold-formed to DIN EN 10346 / DIN EN 10143
- Galvanised finish for outdoor corrosion resistance
- Basic 60 x 65 mm profile for lighter cantilever gates
- 3 metre length – weld to the gate frame
- Matches the Basic cantilever hardware kit (RP000379)
Specifications
- Model: 857/1.3.76 (Basic)
- Material: Galvanised high-yield micro-alloyed steel
- A (height): 60 mm
- B (width): 65 mm
- C (opening): 18 mm
- D (thickness): 3.5 mm
- Length: 3 m
- Weight: 5.52 kg/m (16.6 kg per length)
Applications
- Cantilever (self-supporting) sliding gates
- Residential driveway gates
- Light commercial gate installations
- Gates over uneven or unsealed driveways
