Magnum Cantilever Sliding Gate Hardware Kit

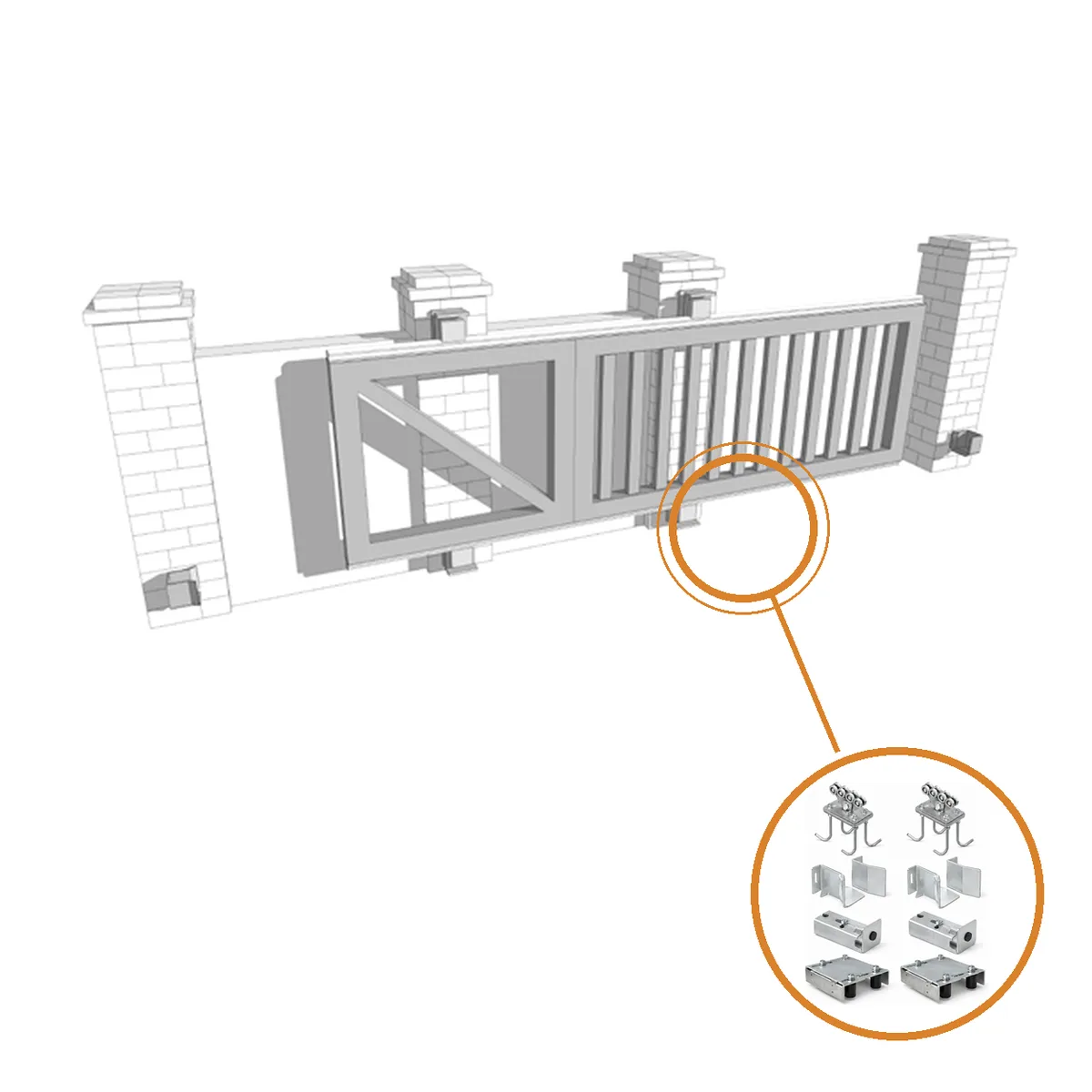

The Magnum Cantilever Sliding Gate Hardware Kit contains the complete running gear for a heavy self-supporting (cantilever) sliding gate built on the large Magnum guide track. Cantilever gates ride above the ground with no floor track, making them ideal for driveways with uneven surfaces, snow, gravel or debris.

The kit includes the carriage assemblies that carry the gate, end support components, gate stops and top guide rollers — everything needed to hang and guide the gate on the matching large guide profile. Pair it with our Magnum cantilever guide track (RP000384) to complete the system.

Key Features

• Complete hardware kit for self-supporting (cantilever) sliding gates
• Magnum size – designed for the large 110 x 90 mm guide track profile
• No ground track required – ideal for uneven or debris-prone driveways
• Includes carriages, end supports, stops and top guide rollers
• Durable construction for heavy residential, commercial and industrial gates
• Pairs with Magnum cantilever guide track (RP000384)

Specifications

• Model: 855/3 (Magnum Kit)
• Suits: Large (Magnum) cantilever guide track 110 x 90 mm (857/3)

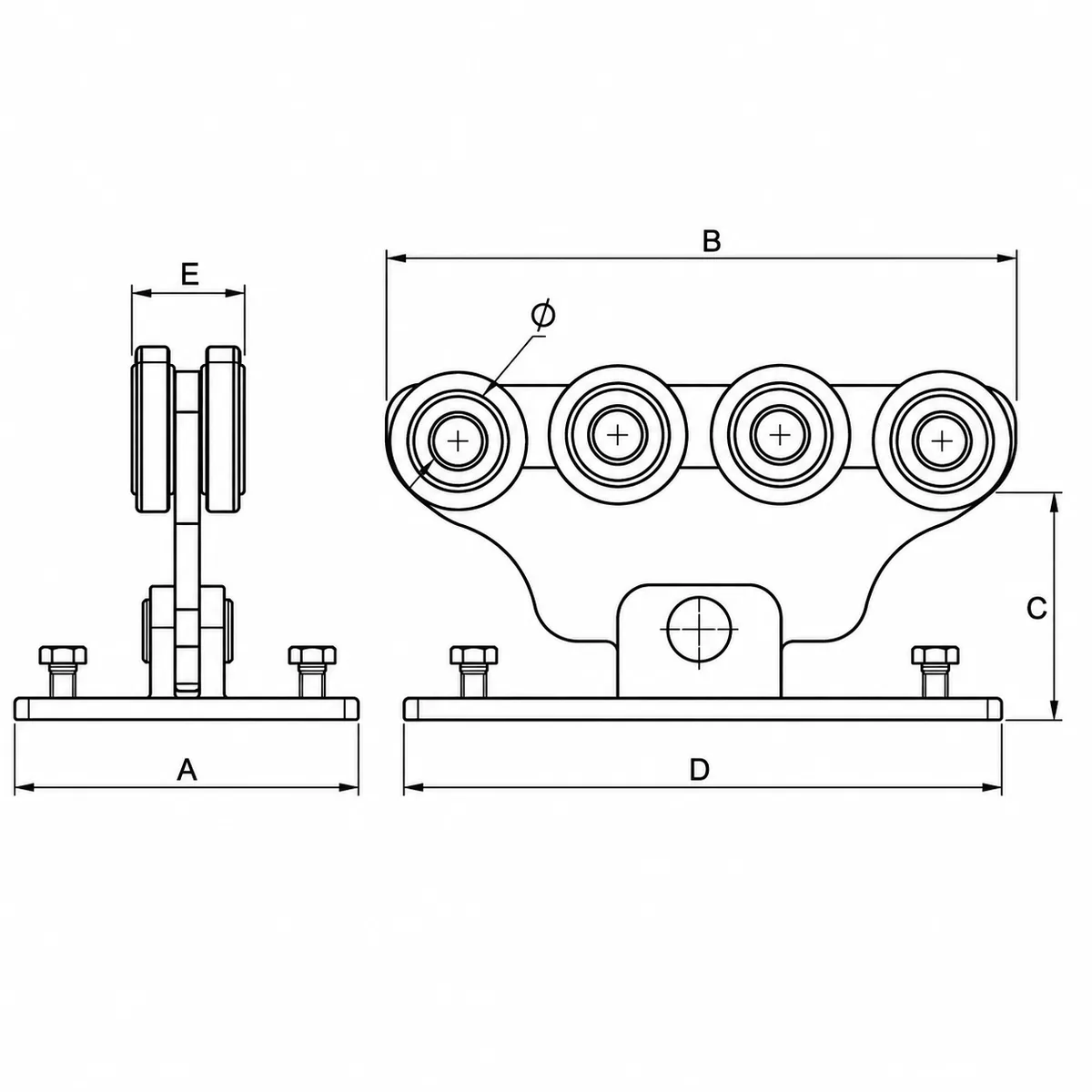

• Kit contents: 2 x carriage assembly (850/3), 2 x end support (851/3), 12 x fixing component (853), 2 x support (854/3), 2 x gate stop (852/3), 2 x top guide roller set (153/4)
• Weight: approx. 66.5 kg complete

Applications

• Cantilever (self-supporting) sliding gates
• Heavy driveway gates
• Commercial gate installations
• Industrial gate systems
• Sites where an in-ground track is impractical
