Sliding Gate Hardware
Galvanised Steel Final Stop for Sliding Gates - Screw-in

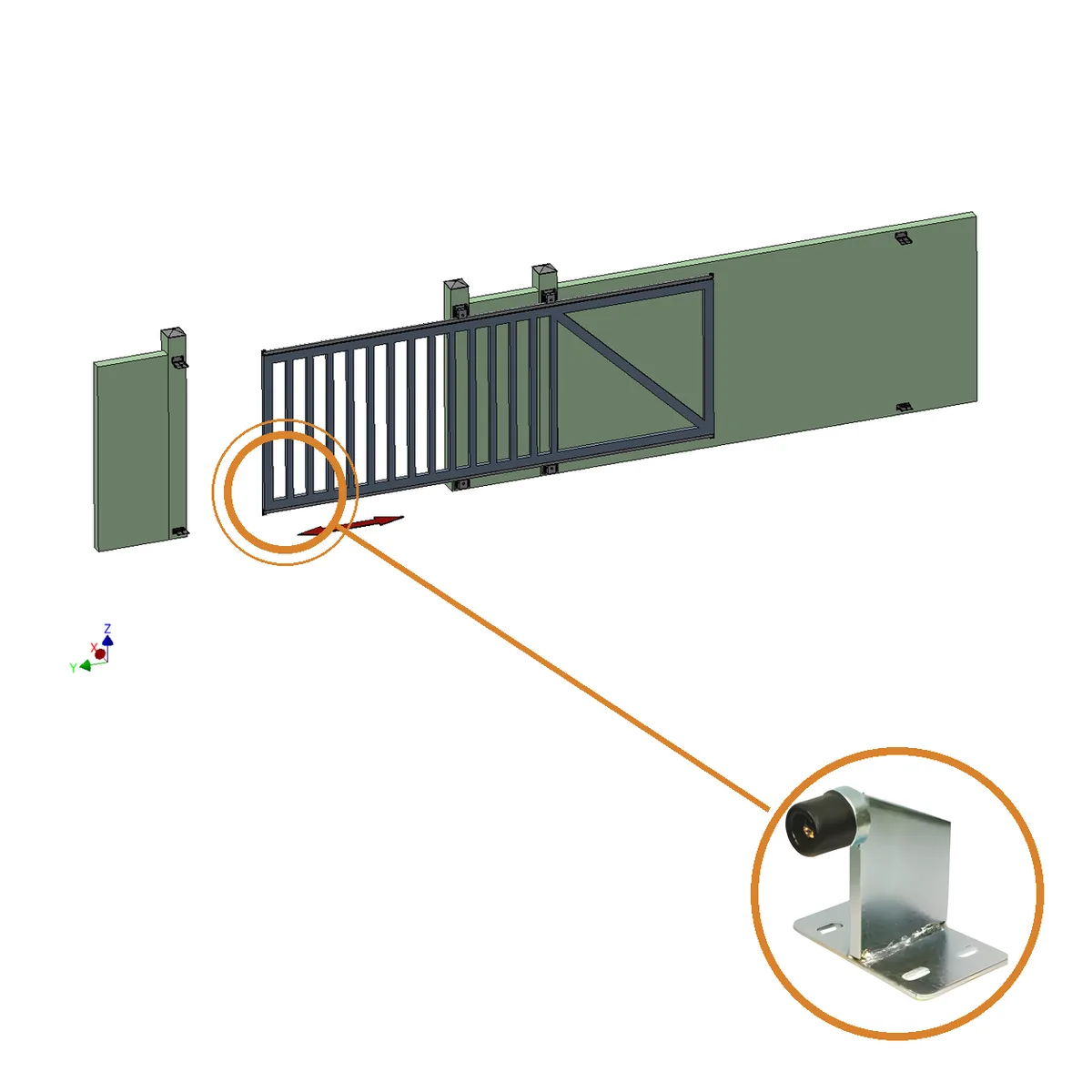

This galvanised steel final stop mounts at the end of the sliding gate's travel, giving the gate a positive, safe stopping point and protecting the motor, rack and hardware from over-run. The rubber buffer absorbs the impact quietly as the gate reaches its limit. Slotted 18 x 9 mm fixings allow accurate positioning on the track or plinth during installation. Galvanised for long outdoor life.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This galvanised steel final stop mounts at the end of the sliding gate's travel, giving the gate a positive, safe stopping point and protecting the motor, rack and hardware from over-run. The rubber buffer absorbs the impact quietly as the gate reaches its limit.
Slotted 18 x 9 mm fixings allow accurate positioning on the track or plinth during installation. Galvanised for long outdoor life.
Key Features
• Positive end-of-travel stop for sliding gates
• Rubber buffer for quiet, cushioned stopping
• Protects motor and hardware from over-run
• Galvanised steel construction
• Slotted 18 x 9 mm holes for accurate positioning
• Simple bolt-down installation
Specifications
• Model: 151/2 (supplier art. 151 family, 90 mm size)
• Material: Galvanised steel with rubber buffer
• A (height): 90 mm
• B (width): 70 mm
• C (length): 108 mm
• D (thickness): 10 mm
• Fixing holes: 18 x 9 mm slotted
• Weight: 820 g
Applications
• Sliding gates
• Driveway gates
• Residential gate systems
• Commercial gate installations
• Industrial gate systems
