Sliding Gate Galvanised Steel Screw-Fix Guide Track - 3M

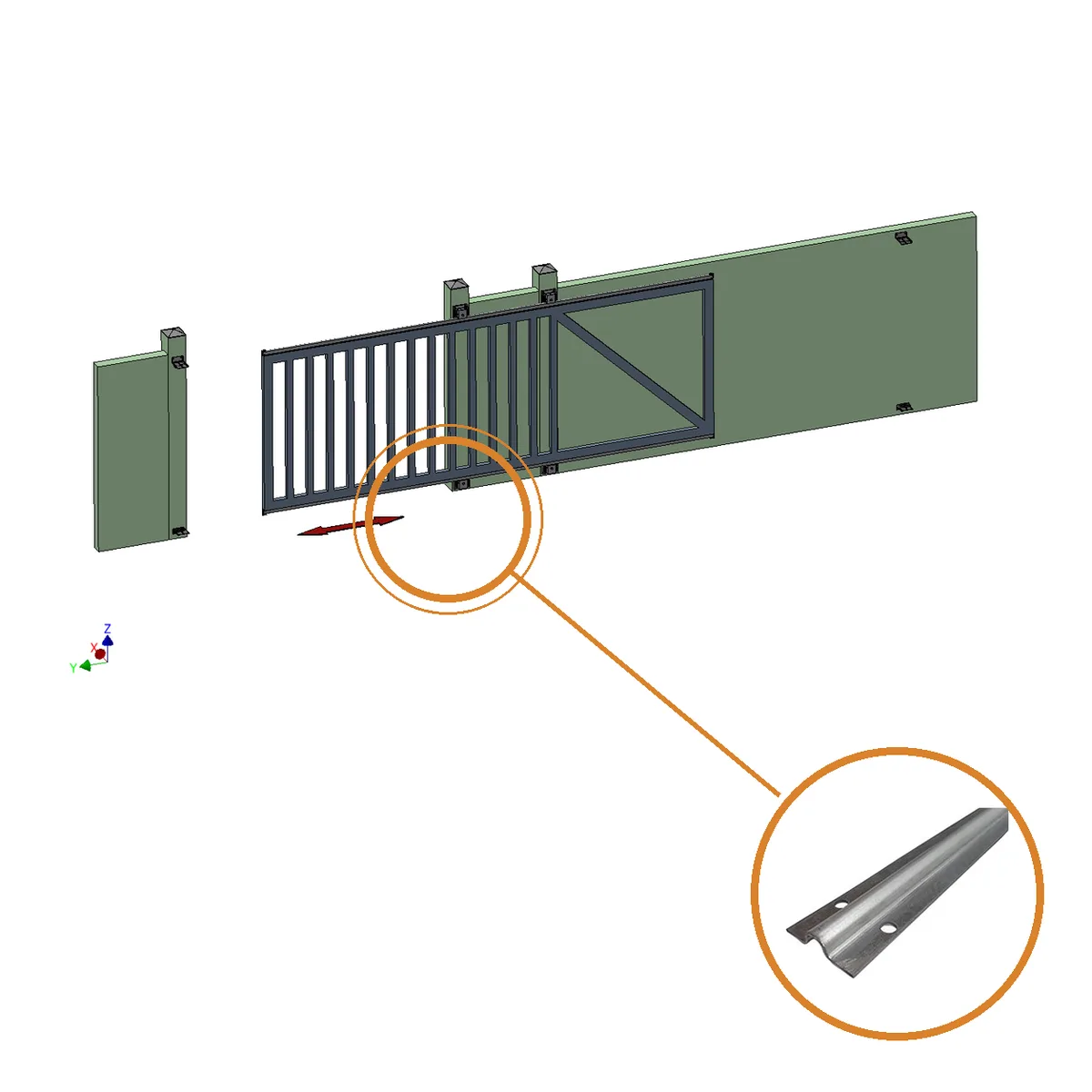

This galvanised steel guide track is the screw-down running surface for sliding gates, fixed to a concrete plinth or steel base to give the gate wheels a straight, durable path. The rolled guide profile suits round-groove gate wheels and keeps the gate tracking accurately in all weather.

Roll-formed from galvanised steel for corrosion resistance, the track is supplied in 3 metre lengths that can be joined for longer runs. Suitable for residential sliding gates through to industrial doors. A stainless steel version and 6m lengths are available on request.

Key Features

• Screw-on guide track for sliding gates
• Galvanised steel for outdoor corrosion resistance
• Rolled profile suits round-groove gate wheels
• 3 metre length – join multiple lengths for longer gates
• Pre-formed fixing profile for straightforward installation
• Suits residential, commercial and industrial gates

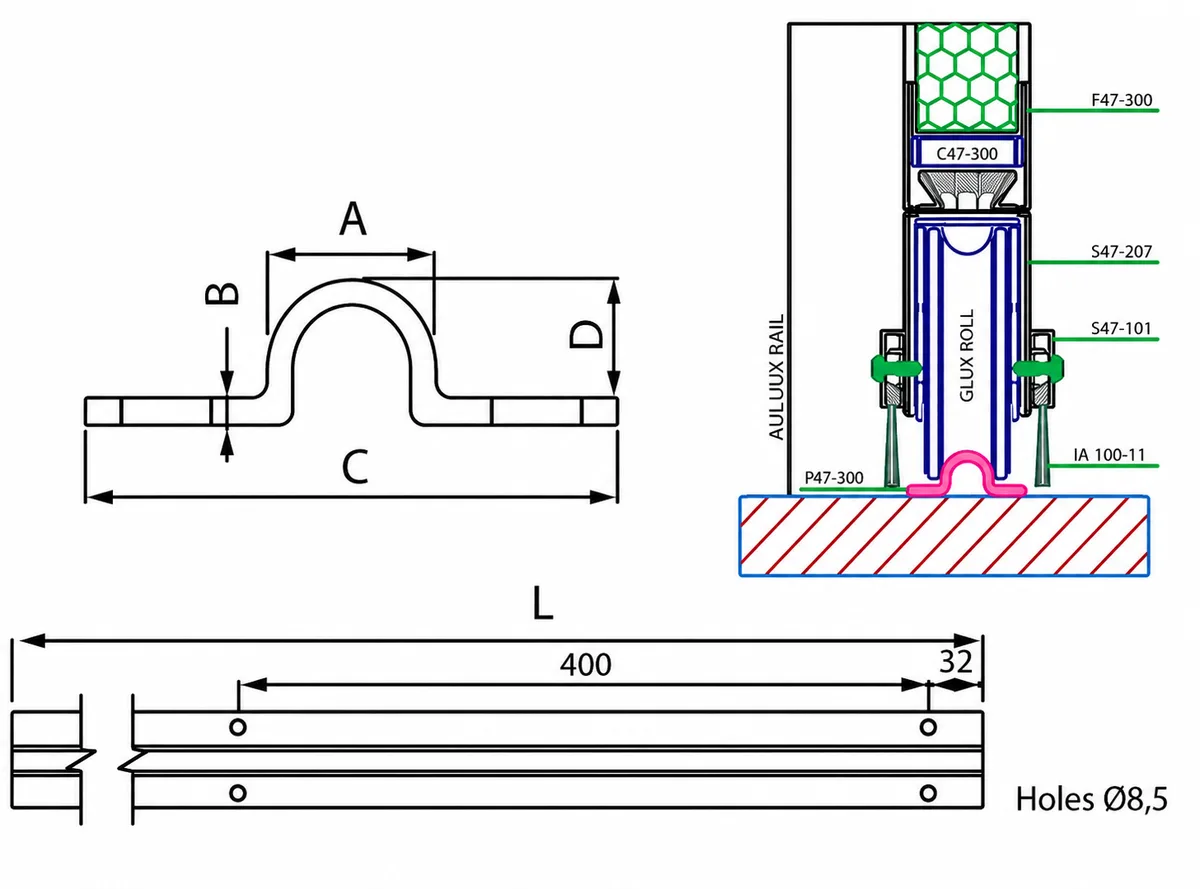

Specifications

• Model: 3091/20.3
• Material: Galvanised steel
• A (rail height): 20 mm
• B (thickness): 3 mm
• C (base width): 55 mm
• D (groove): 13.5 mm
• Length: 3 m
• Weight: 1.6 kg/m (4.8 kg per length)

Applications

• Sliding gates
• Driveway gates
• Industrial sliding doors
• Commercial gate installations
