Sliding Gate Hardware
Adjustable Sliding Gate Top Guide with 2 Nylon Rollers

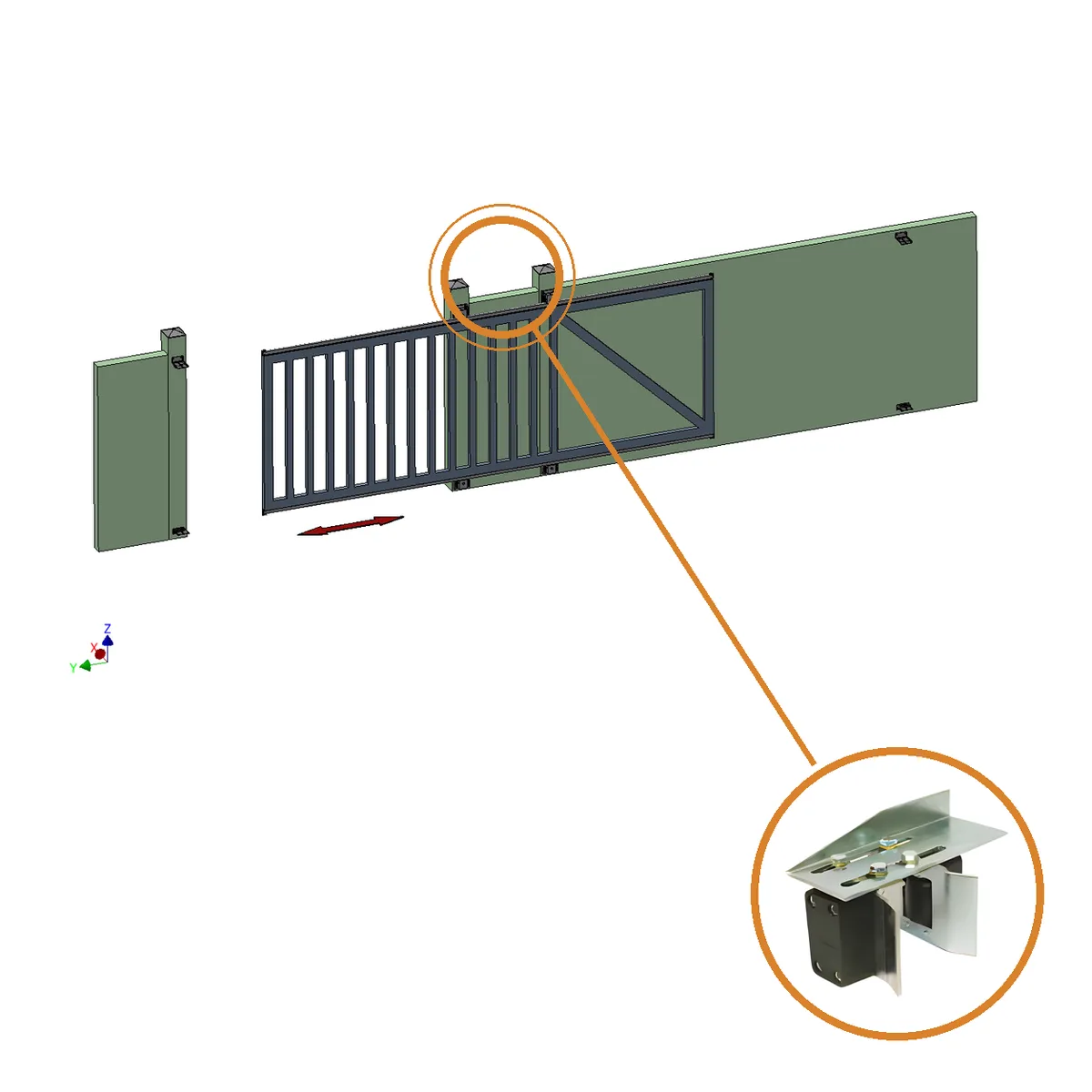

This adjustable top guide steadies the top edge of your sliding gate between two Ø40 mm rounded nylon rollers, keeping the panel upright and tracking true. The roller spacing adjusts from 38 to 108 mm, so one guide suits a wide range of gate frame thicknesses.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This adjustable top guide steadies the top edge of your sliding gate between two Ø40 mm rounded nylon rollers, keeping the panel upright and tracking true. The roller spacing adjusts from 38 to 108 mm, so one guide suits a wide range of gate frame thicknesses.
The galvanised steel support bolts to the post or wall beside the gate; the nylon rollers run quietly and won't mark painted frames. A brass-roller version (161.3) is available on request.
Key Features
- Two Ø40 mm rounded nylon rollers for quiet, non-marking guidance
- Roller spacing adjusts 38-108 mm to suit the gate frame
- Galvanised steel support bracket
- Keeps the gate panel upright and aligned
- Bolt-on installation with slotted adjustment
- Brass roller version available on request

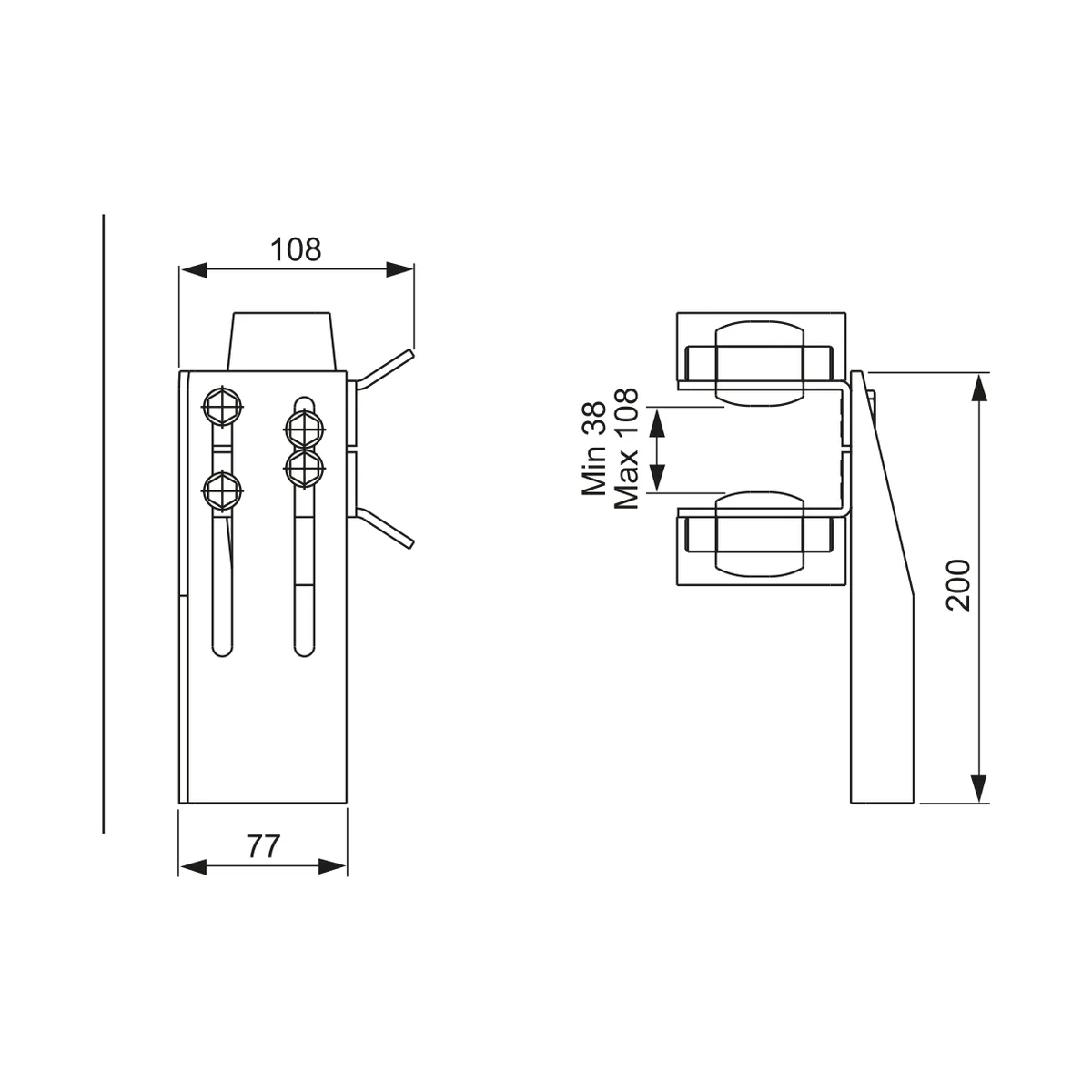

Specifications
- Model: 161.2
- Material: Galvanised steel bracket with nylon rollers
- Rollers: 2 x Ø40 mm rounded nylon
- Adjustment range: 38-108 mm
- Bracket: 108 x 200 x 77 mm
- Weight: 1.6 kg
Applications
- Sliding gates
- Driveway gates
- Residential gate systems
- Commercial gate installations
- Industrial gate systems
