Sliding Gate Galvanised Steel Concrete-in Ground Guide Track - 3M

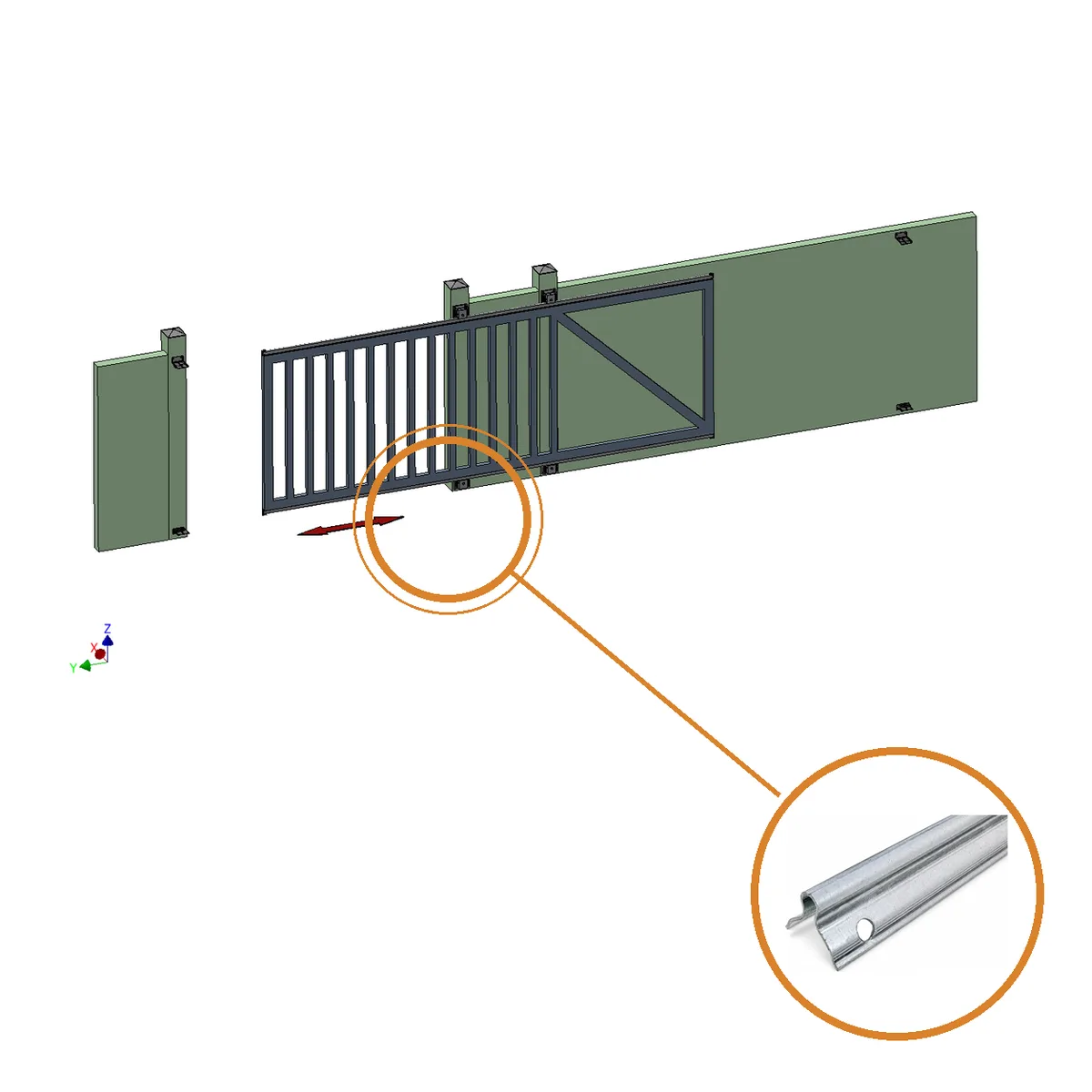

This cement-in guide track is set directly into the concrete across your gateway, creating a permanent, flush ground track for sliding gates. The anchor profile locks into the concrete while the exposed guide rib gives round-groove gate wheels a precise running surface.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This cement-in guide track is set directly into the concrete across your gateway, creating a permanent, flush ground track for sliding gates. The anchor profile locks into the concrete while the exposed guide rib gives round-groove gate wheels a precise running surface.
Roll-formed from galvanised steel in 3 metre lengths, the track resists corrosion below and above ground and can be joined end-to-end for wider openings. The heavier 4mm-thick version (3096) and 6m lengths are available on request.
Key Features
- Cement-in ground track for sliding gates
- Anchor profile locks permanently into concrete
- Galvanised steel for long-term corrosion resistance
- Flush finish – no raised plates across the driveway
- 3 metre length – join multiple lengths for wider gates
- Suits round-groove gate wheels
Specifications
- Model: 3094/20.3
- Material: Galvanised steel
- A (rail height): 20 mm
- B (thickness): 3 mm
- C (profile width): 60 mm
- Length: 3 m
- Weight: 2.87 kg/m (8.6 kg per length)
Applications
- Sliding gates
- Driveway gates
- New concrete driveways and crossings
- Commercial gate installations
