Sliding Gate Hardware
Galvanised Steel Sliding Gate End Stop - 73mm

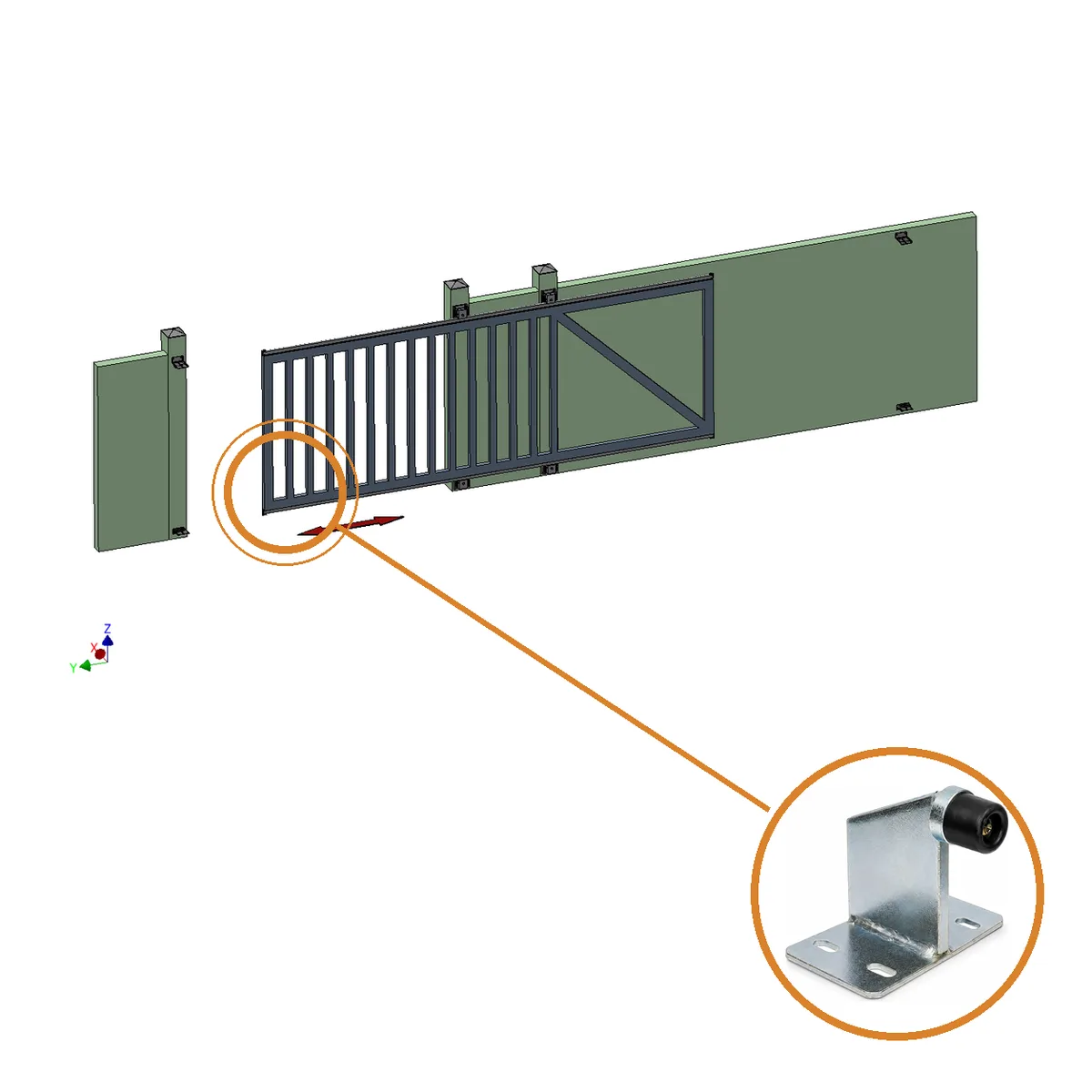

This galvanised steel end stop bolts to the ground track or plinth at the end of your sliding gate's travel, giving the gate a positive, safe stopping point in both directions and preventing it running off the end of the track.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This galvanised steel end stop bolts to the ground track or plinth at the end of your sliding gate's travel, giving the gate a positive, safe stopping point in both directions and preventing it running off the end of the track.
Slotted 18 x 9 mm fixing holes allow fine positioning during installation, and the heavy 73 mm profile absorbs day-to-day contact from the gate wheel. Galvanised for long outdoor life.
Key Features
- Positive end-of-travel stop for sliding gates
- Galvanised steel for outdoor corrosion resistance
- Slotted 18 x 9 mm holes for accurate positioning
- Heavy-gauge construction absorbs repeated contact
- Simple bolt-down installation
- Suits residential, commercial and industrial gates
Specifications
- Model: 151/1.2
- Material: Galvanised steel
- A (height): 73 mm
- B (width): 50 mm
- C (length): 98 mm
- D (thickness): 8 mm
- Fixing holes: 18 x 9 mm slotted
- Weight: 580 g
Applications
- Sliding gates
- Driveway gates
- Residential gate systems
- Commercial gate installations
- Industrial gate systems
