Sliding Gate Hardware
Removable Sliding Gate Wheel 90mm Ø U Groove

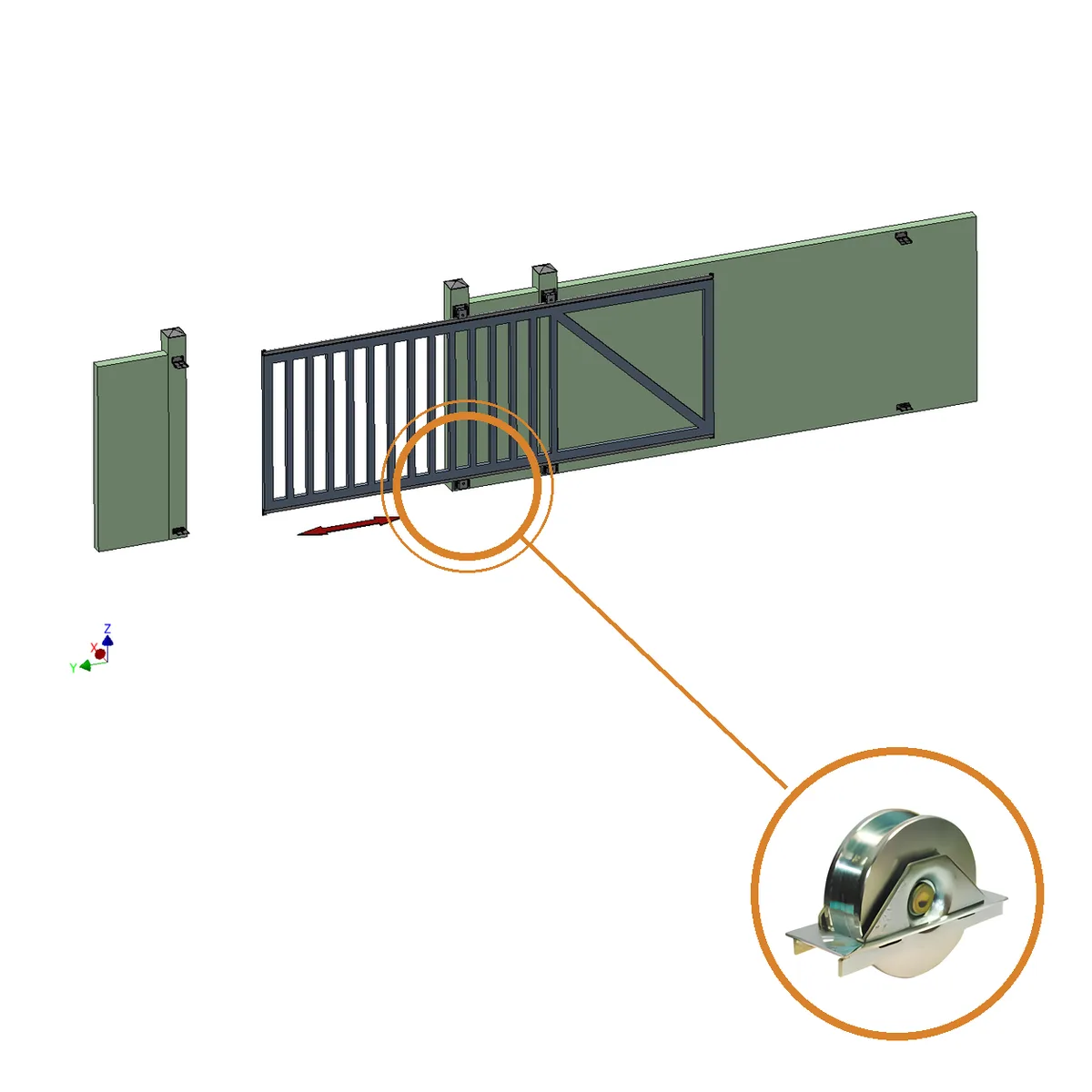

This 90 mm extractable gate wheel mounts in bolt-on or weld-on support plates that let you remove the wheel without lifting the gate off — a major time-saver when servicing or replacing wheels on heavy gates.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This 90 mm extractable gate wheel mounts in bolt-on or weld-on support plates that let you remove the wheel without lifting the gate off — a major time-saver when servicing or replacing wheels on heavy gates.
The galvanised steel wheel has a round (O) groove for round bar track and runs on a shielded ball bearing. Nylon and stainless versions of this family are available on request.
Key Features
- Wheel extracts from its support plates for easy servicing
- No need to lift the gate to change the wheel
- Round (O) groove for round bar track
- Galvanised steel wheel on shielded ball bearing
- Support plates bolt or weld to the gate frame
- Suits residential and commercial sliding gates
Specifications
- Model: 221/9/25
- Material: Galvanised steel
- Wheel diameter: 90 mm
- A: 25 mm, C: 20 mm, D: 10 mm
- H: 28 mm, L: 32 mm
- Bearing: 1 x shielded ball bearing
- Weight: approx. 930 g
Applications
- Sliding gates
- Driveway gates
- Residential gate systems
- Commercial gate installations
- Industrial gate systems
