Sliding Gate Hardware
Sliding Gate Wheel 120mm Ø U Groove 2 Bearings - Gal Steel
This 120 mm sliding gate wheel runs on round-section ground track to carry your gate smoothly and quietly. Machined from galvanised steel with a round (O) groove profile, it rides twin shielded ball bearings for low rolling resistance and a long service life.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This 120 mm sliding gate wheel runs on round-section ground track to carry your gate smoothly and quietly. Machined from galvanised steel with a round (O) groove profile, it rides twin shielded ball bearings for low rolling resistance and a long service life.

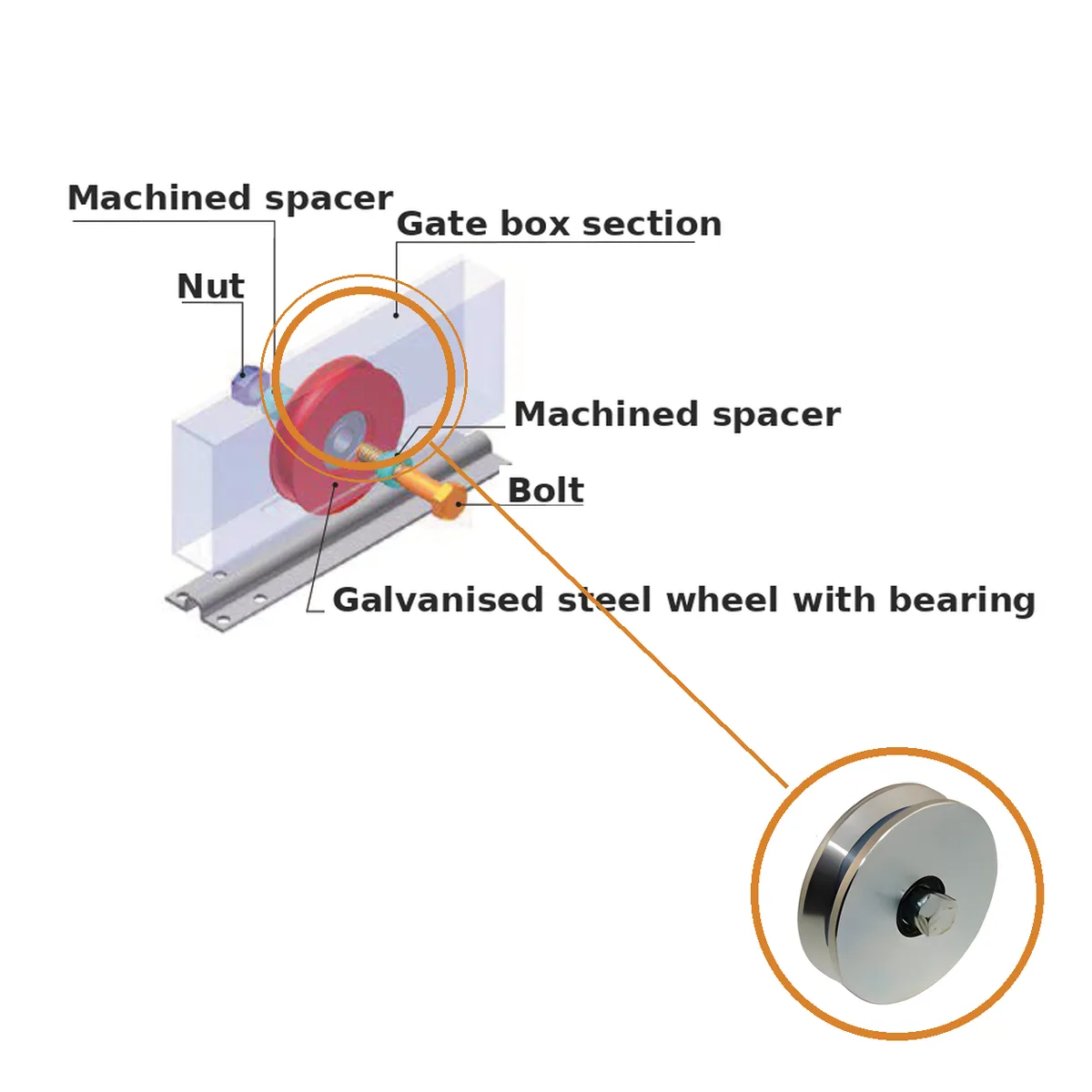

The wheel is supplied with an M14 x 70 mounting bolt, making installation straightforward — bolt it through the gate frame, set the height and you're rolling. Suits residential and light commercial sliding gates running on round bar track.
Key Features
- Galvanised steel wheel with round (O) groove profile
- Two shielded ball bearings for smooth, quiet running
- Supplied with M14 x 70 mounting bolt
- 120 mm diameter – compact wheel for lighter gates
- Corrosion-resistant finish for outdoor use
- Cataphoresis (black) version available on request
Specifications
- Model: 111/12/25/2
- Material: Galvanised steel
- Wheel diameter: 120 mm
- Groove: Round (O), 25 mm series
- Bearings: 2 x shielded ball bearings
- Bolt: M14 x 70 (included)
- A: 26 mm, B: 44 mm, C: 20 mm, D: 10 mm
- Weight: 1.40 kg
Applications
- Sliding gates on round bar track
- Residential driveway gates
- Commercial gate installations
- Steel and aluminium gates
