Sliding Gate Hardware
Sliding Gate Wheel 160mm Ø U Groove 2 Bearings - Lubricating
Built for heavy gates and frequent use, this 160 mm wheel runs two ball bearings and adds a grease nipple so the hub can be re-lubricated in service — extending bearing life dramatically on industrial gates.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
Built for heavy gates and frequent use, this 160 mm wheel runs two ball bearings and adds a grease nipple so the hub can be re-lubricated in service — extending bearing life dramatically on industrial gates.

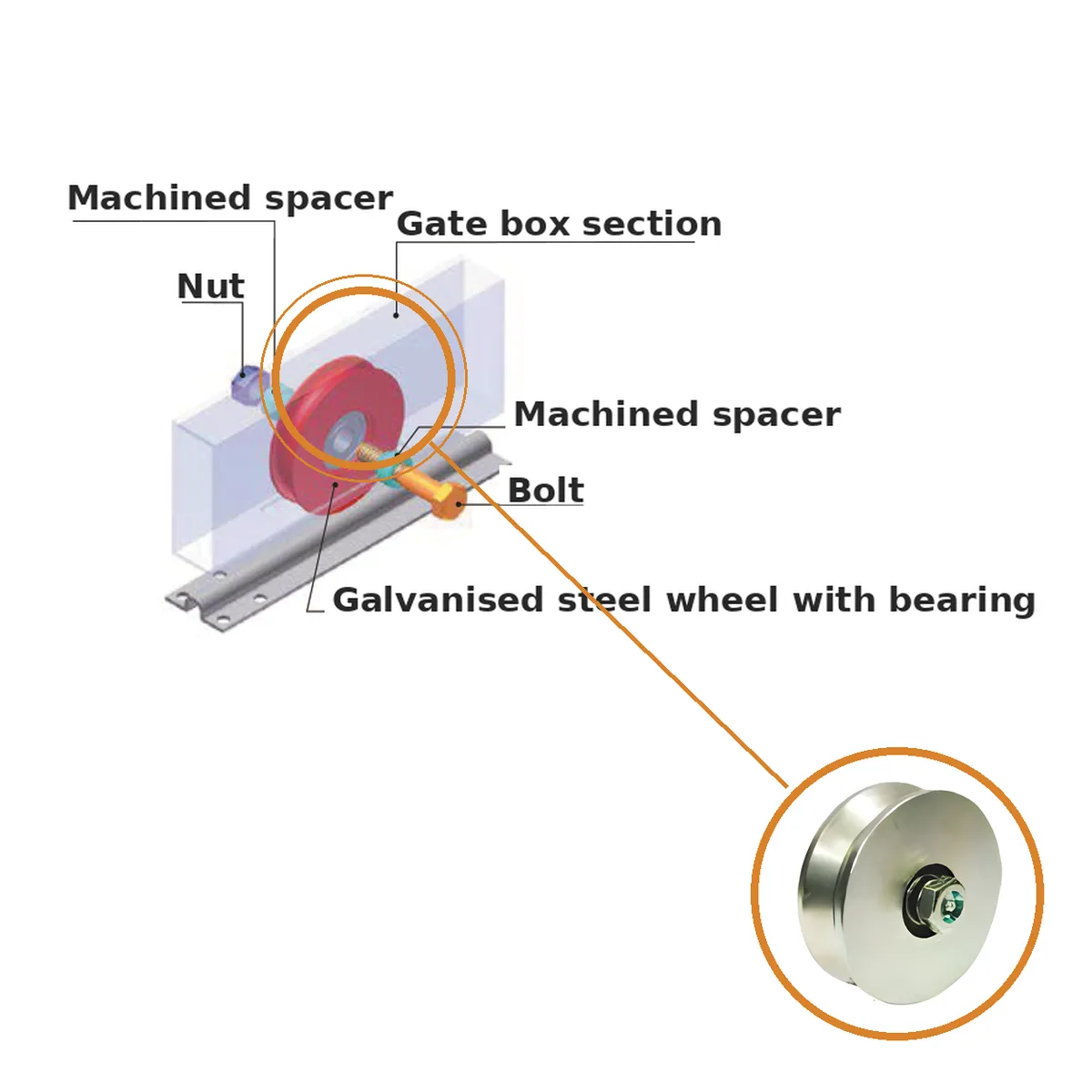

The galvanised steel wheel has a round (O) groove for round bar track and is supplied with its 18 x 90 axle bolt. Cataphoresis (black) versions are available on request.
Key Features
- Grease nipple for in-service lubrication
- Two ball bearings carry heavy loads smoothly
- Galvanised steel wheel with round (O) groove
- 160 mm diameter for heavy gates
- Supplied with 18 x 90 axle bolt
- Cataphoresis (black) version available on request
Specifications
- Model: 101/16/38
- Material: Galvanised steel
- Wheel diameter: 160 mm
- A: 38 mm, B: 44 mm, C: 25 mm, D: 12 mm
- Axle: 18 x 90 (included)
- Bearings: 2 x ball bearings, greasable hub
- Weight: 4.87 kg
Applications
- Heavy sliding gates
- Industrial gate systems
- Commercial gate installations
- High-traffic driveway gates
