Sliding Gate Hardware
Sliding Gate Wheel 90mm Ø U Groove 2 Bearings - Removeable

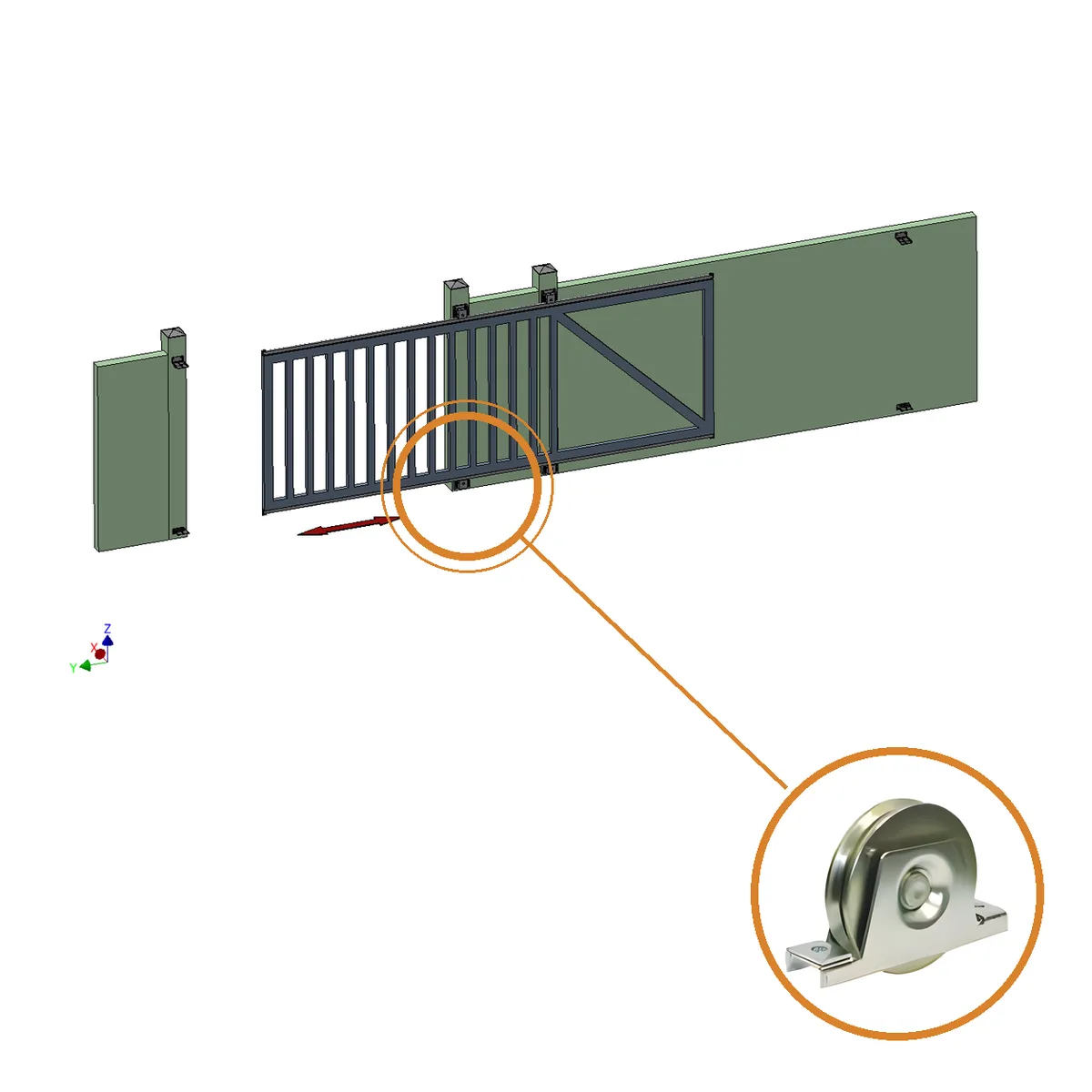

This 90 mm extractable gate wheel sits in a closed galvanised steel bracket that bolts or welds to the gate frame — and the wheel removes from the bracket without lifting the gate, making wheel changes and servicing fast.
Confirm fit, current availability and the warranty for this part with your stockist before ordering.
Product information
Details & specifications
This 90 mm extractable gate wheel sits in a closed galvanised steel bracket that bolts or welds to the gate frame — and the wheel removes from the bracket without lifting the gate, making wheel changes and servicing fast.
The round (O) groove wheel rides two shielded ball bearings for smooth, quiet running on round bar track.
Key Features
- Wheel extracts from the closed bracket for easy servicing
- No need to lift the gate to change the wheel
- Two shielded ball bearings for smooth running
- Round (O) groove for round bar track
- Galvanised steel wheel and closed support bracket
- 90 mm wheel diameter
Specifications
- Model: 121/9/25/2
- Material: Galvanised steel
- Wheel diameter: 90 mm
- A: 26 mm, C: 20 mm, D: 10 mm
- H: 25 mm, L: 35 mm
- Bearings: 2 x shielded ball bearings
- Weight: 1.00 kg
Applications
- Sliding gates
- Driveway gates
- Residential gate systems
- Commercial gate installations
- Industrial gate systems
